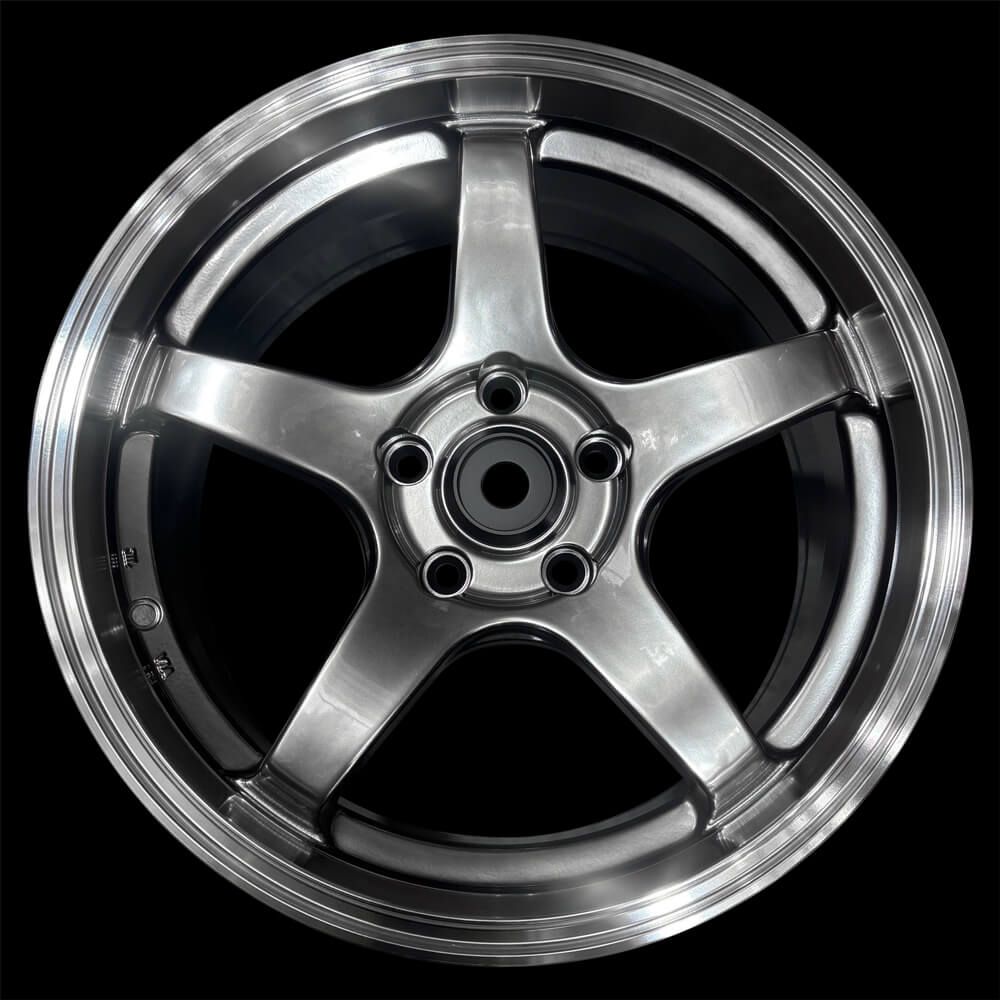

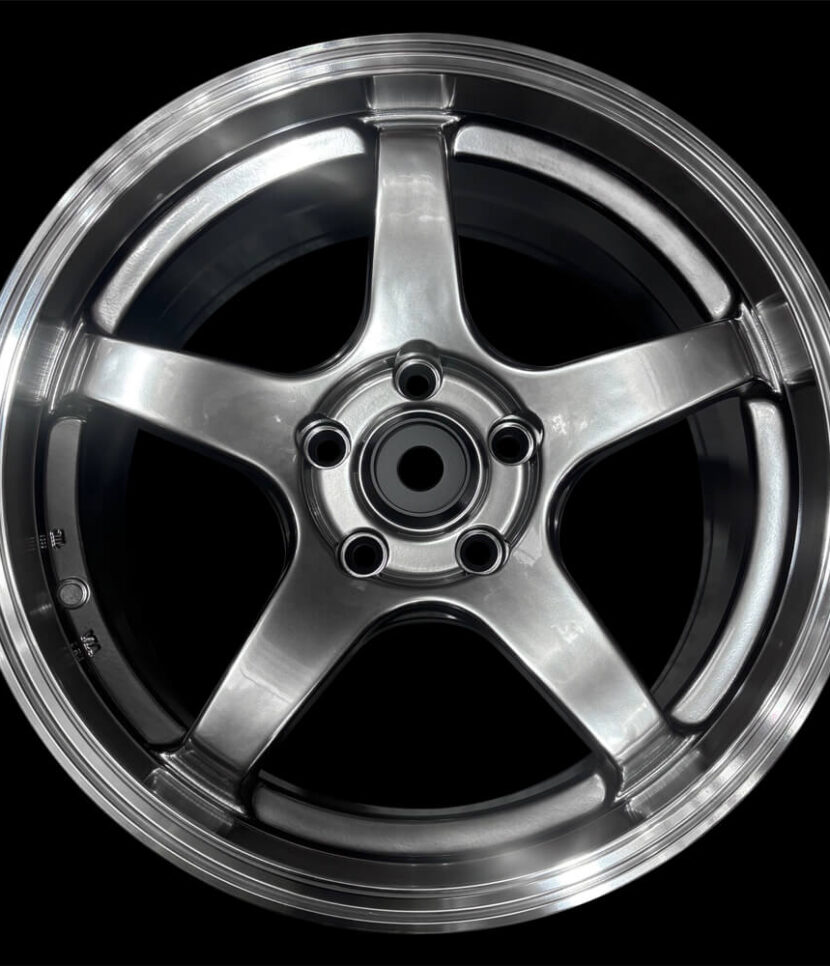

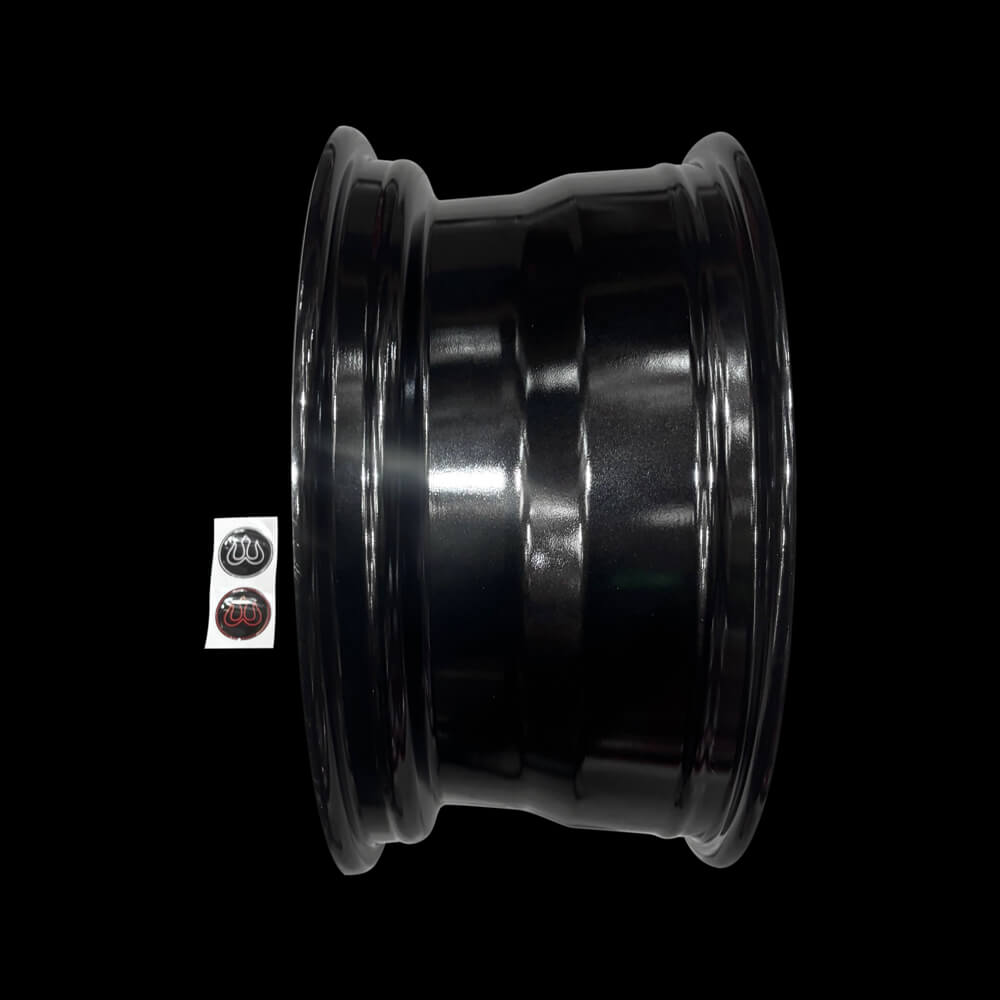

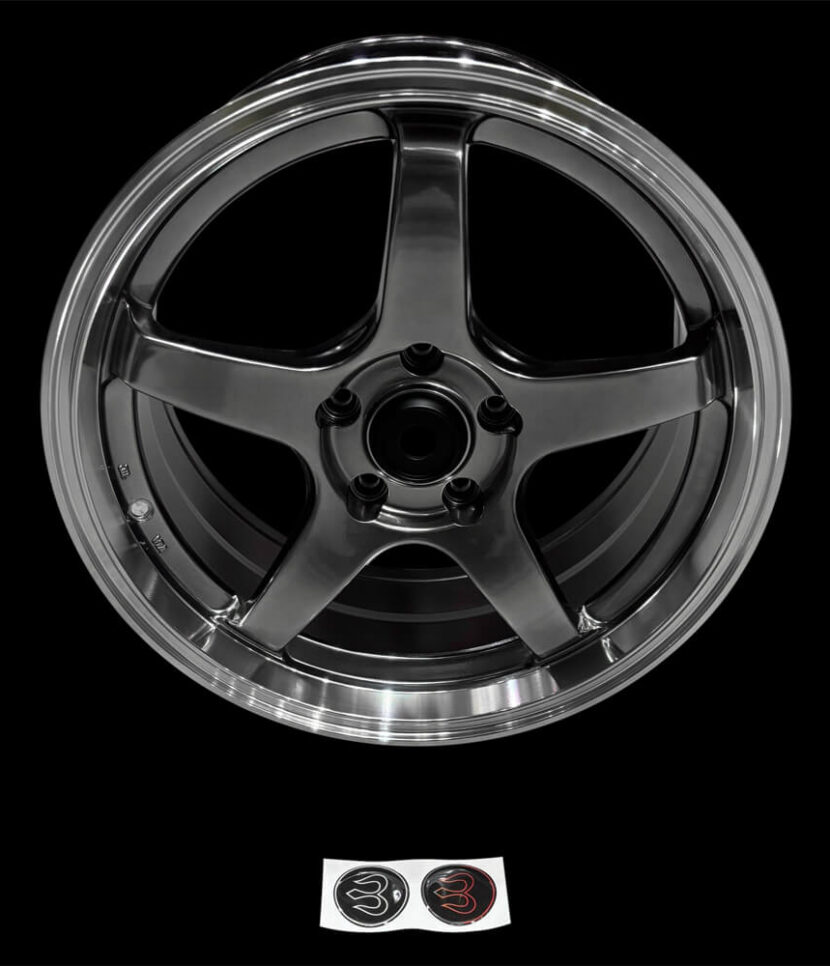

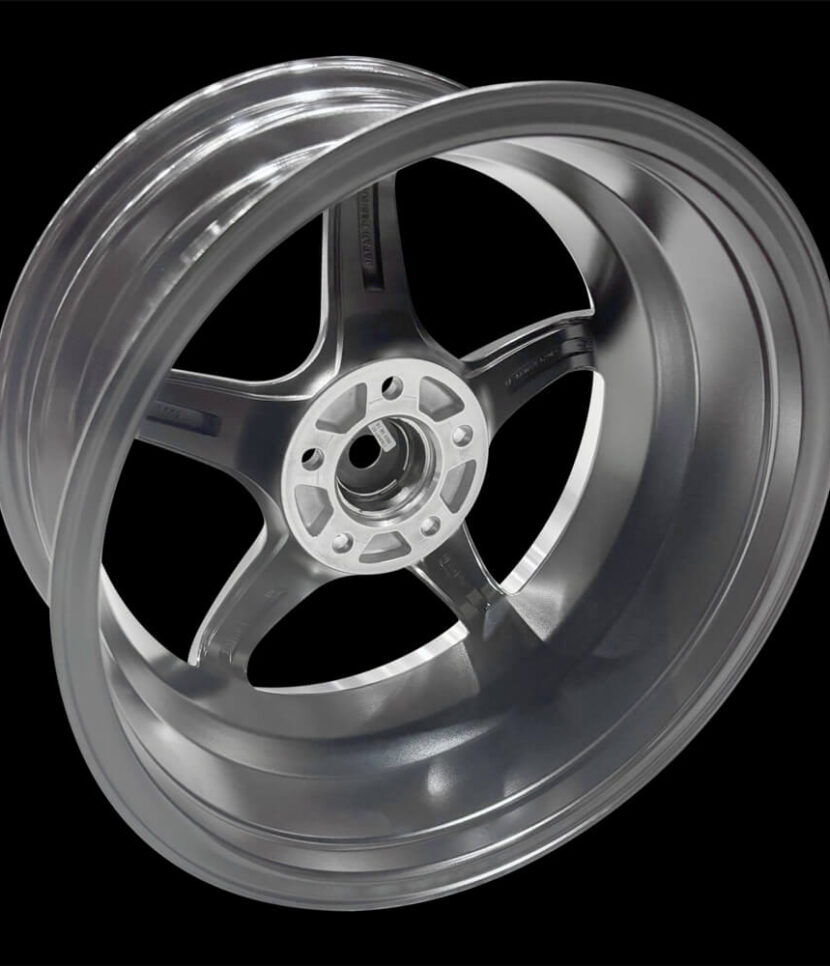

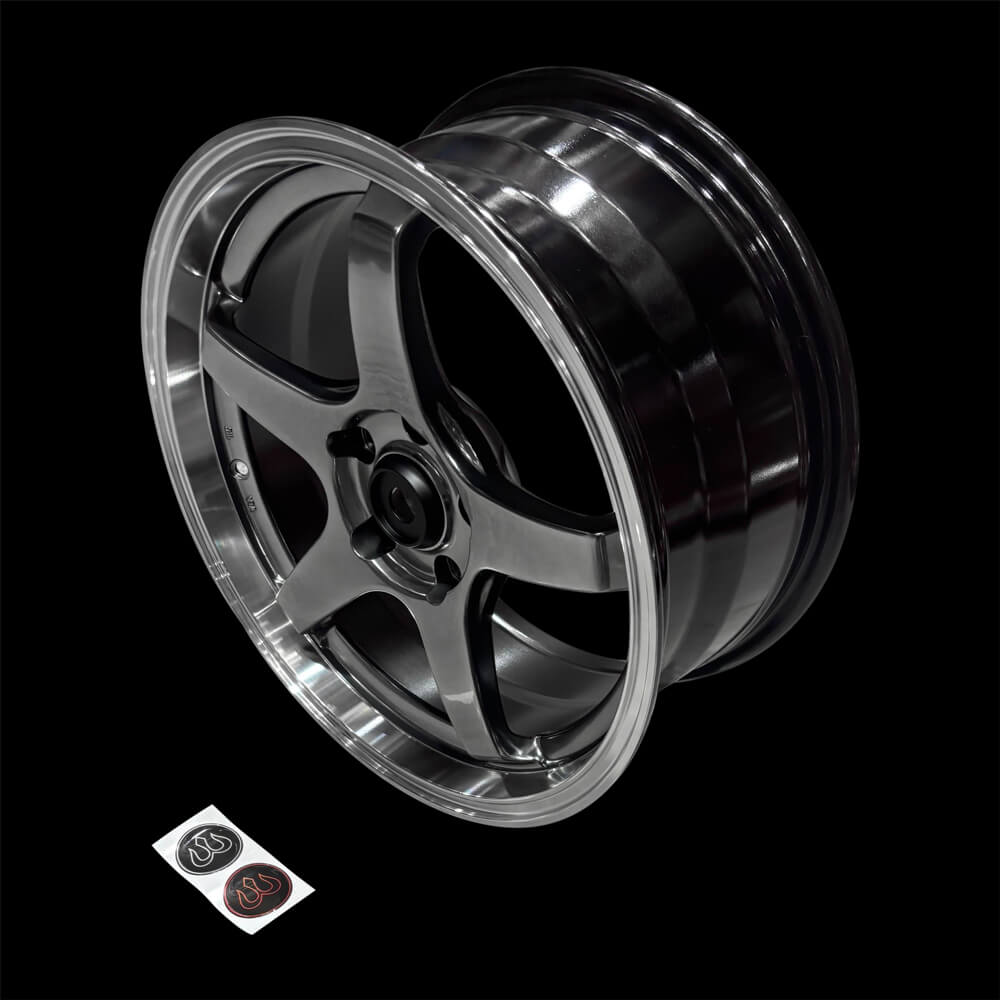

Toyota Mk4 Supra Grey/Polished 5 Spoke 17 inch Alloy Wheels, 93-02

This is a set of 4 wheels for the Toyota Supra 93-02.

These wheels are supplied with the required hardware to fit them to the car.

Tyres are not included.

They are a 17 inch by 8 inch wheel (17 x 7.5) and are ideally suited to tyres in the 215 to 235 width range. These are common tyre sizes and therefore there is a wide range of tyres available from budget to slick options.

These have an offset when fitted with the supplied hardware of ET35. This means that they have around 5mm of poke over the standard wheels for the car.
Prior to ordering, please check you have the required arch clearance. If not, you will need to modify the arches for a safe fitment.

Product Fitment Data:

Additional Poke – 5mm
Wheel Spacer Included? – FALSE
Stud Conversion? – No
Wheel Offset When Fitted – ET35
Wheel Nuts – 17mm – Black



Vehicle Fitment Data:

Make – Toyota
Model – Supra
Chassis Code – Mk4
Production Years – 93-02
Hub PCD – 5 x 114.3
Hub Bolt/Stud Thread – M12 x 1.5
OE Offset – ET40
Spigot – 60.1mm
Notes – A80

Wheel Data:

Colour – Grey/Polished
Style – 5 Spoke
Material – Aluminium
Construction – One Piece
Diameter – 17
Width – 8
Wheel PCD – 5 x 114.3
Offset – 35ET
Pocketed – Yes

Barbarian Racing BDW Wheels

The Barbarian Racing wheels are only available in a 5 x 114.3 PCD which means less options to hold in stock and greater availability. If your car doesn’t use a 5 x 114.3 PCD then a hub adapter will be supplied. The details of any spacer can be found above along with the theoretical PCD which is what we have used to calculate the extra poke once fitted. Should you damage a wheel/s then replacements are available as singles.

Fitment considerations

Arch clearance – Our calculations are done from OE wheel fitment data which does not indicate the distance the wheel arch is from the hub. Before buying, be sure to measure your arch clearance and if in doubt, contact us prior to purchase.

Brake clearance – Brake caliper size data is not available and therefore we cannot confirm if the wheel will clear the caliper. If these wheels are the same size or larger than what is currently on the car, you will likely have no cause for concern here. If however, you are downsizing the wheels, it’s important to check clearance.

Weight	35 kg
Dimensions	60 × 60 × 95 cm
K-Type	119324, 33572, 33571, 49448, 158370, 3856
Stud Conversion?	No
Finish	Gloss & Polished
Wheel Style	5 Spoke
Material	Aluminium
Wheel Weight (Kg)	8.5
Construction	One Piece
Wheel Diameter	17
Rim Width	8
Rim Offset ET	35
Car Side PCD	5 x 114.3
Number of Studs	5
Stud Diameter	114.3
Spigot	60.1mm
Colour	Grey/Polished
PCD Conversion	No
Wheel Spacer Included	FALSE
Brand	Barbarian Racing
Manufacturer	Toyota
Model	Supra
Chassis Code	Mk4
Production Years	93-02
Notes	A80
Fitted Offset (ET)	35
Extra Poke Over OE Wheel (mm)	5
Wheel Nuts	17mm – Black
Package Quantity	4
EAN	5056178068606
Clearance Information	See the description for details on checking arch and caliper clearance
Country/Region of Manufacture	China
