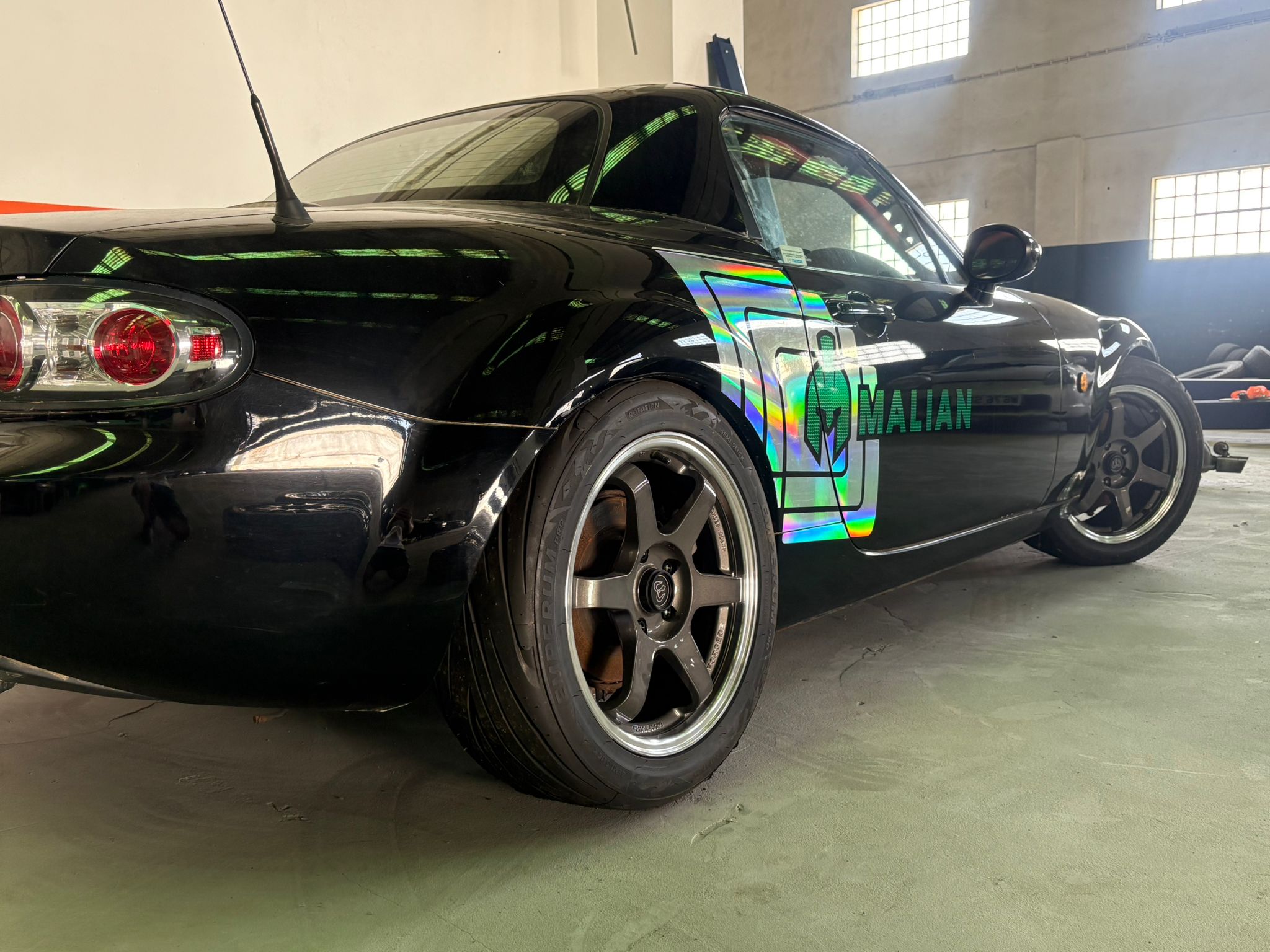

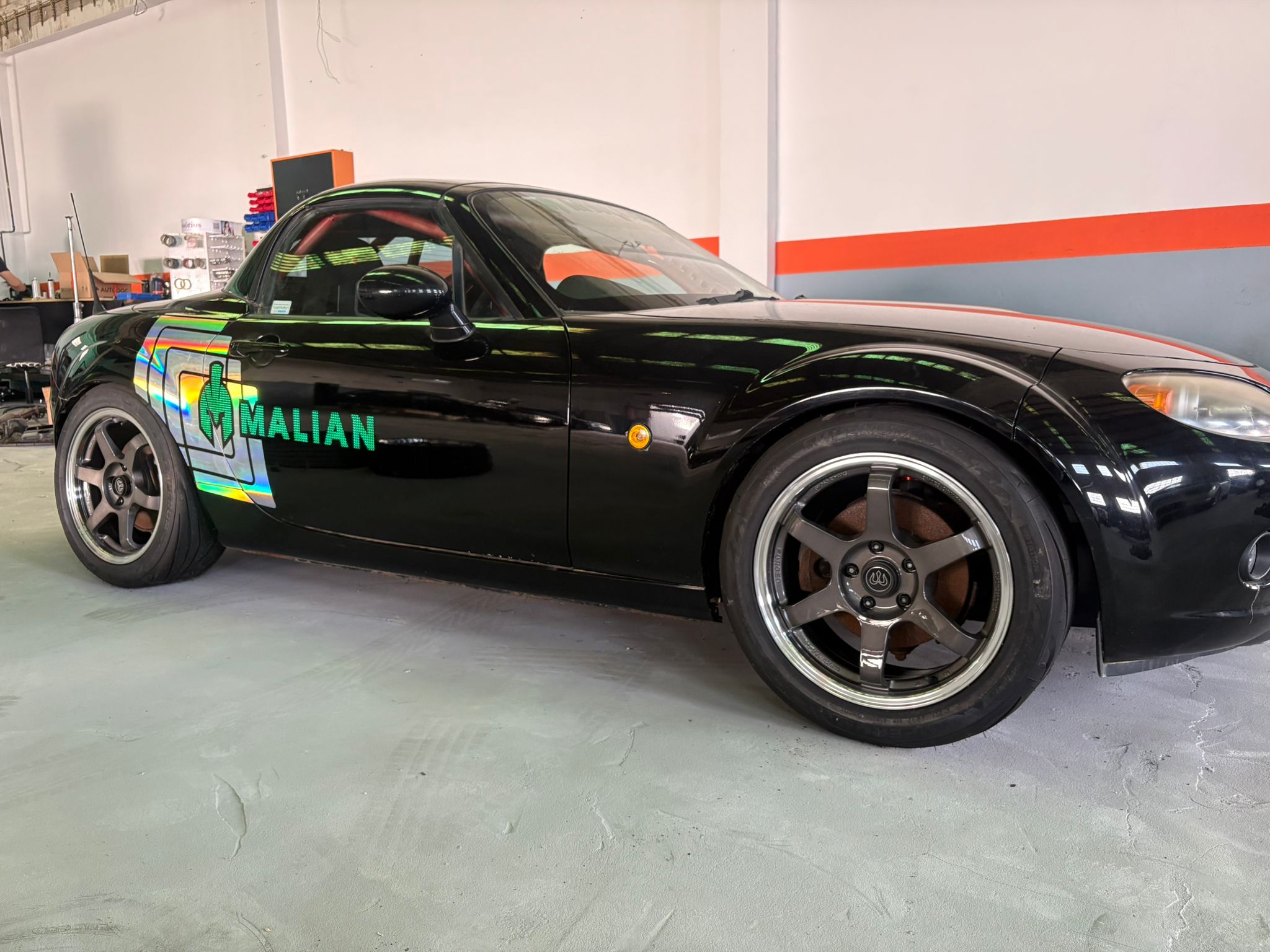

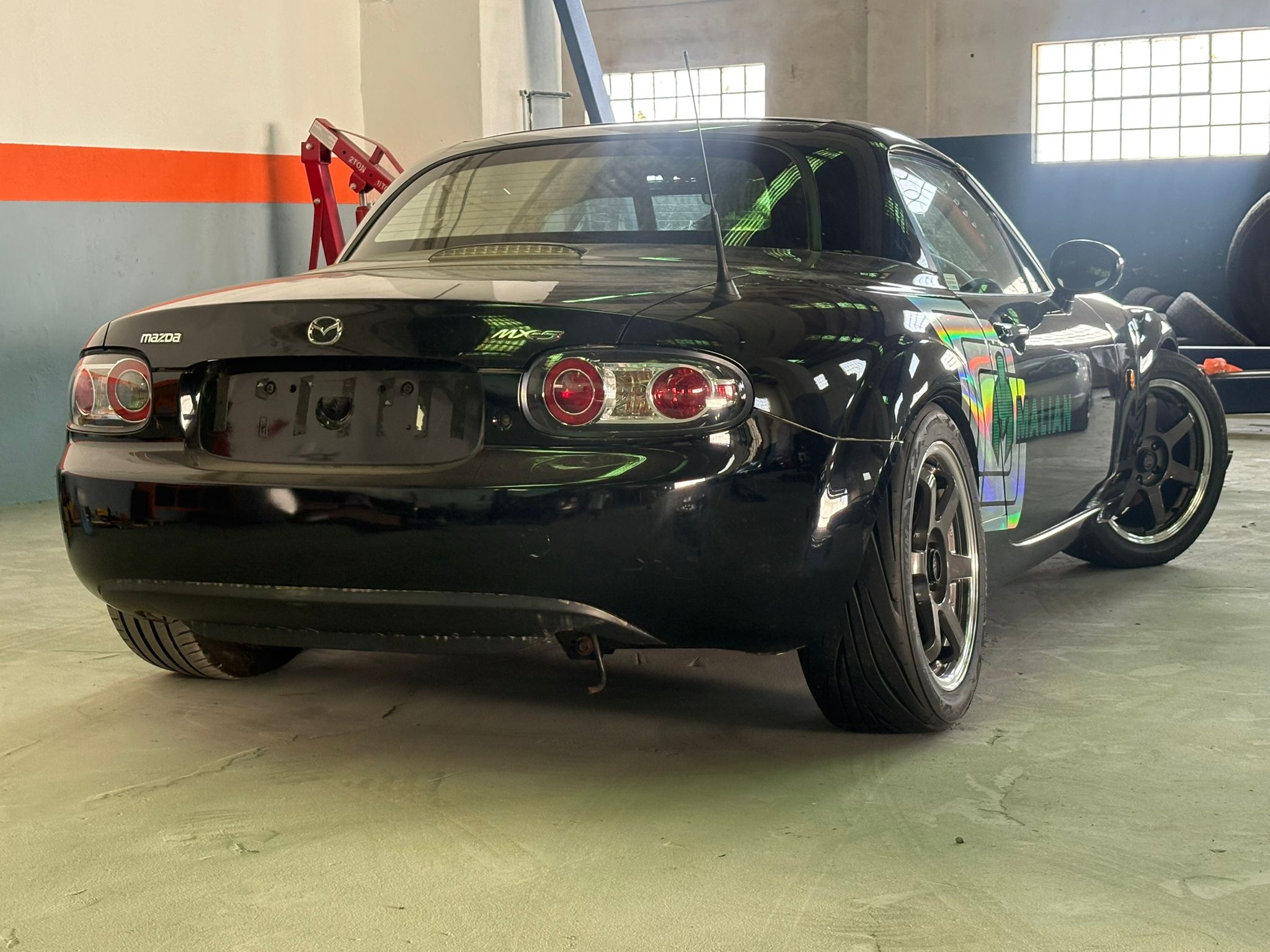

Grey/Polished 6 Spoke 17 inch Alloy Wheels for Mazda NC MX5 Mk3 05-15

This is a set of 4 wheels for the Mazda MX5 Mk3 05-15.

These wheels are supplied with the required hardware to fit them to the car.

Tyres are not included.

They are a 17 inch by 7.5 inch wheel (17 x 7.5) and are ideally suited to tyres in the 215 to 235 width range. These are common tyre sizes and therefore there is a wide range of tyres available from budget to slick options.

These have an offset when fitted with the supplied hardware of ET38. This means that they have around 17mm of poke over the standard wheels for the car.
Prior to ordering, please check you have the required arch clearance. If not, you will need to modify the arches for a safe fitment.

Product Fitment Data:

Additional Poke – 17mm
Wheel Spacer Included? No-
Stud Conversion? – No
Wheel Offset When Fitted – ET38
Wheel Nuts – 17mm – Black



Vehicle Fitment Data:

Make – Mazda
Model – MX5 Mk3
Chassis Code – NC
Production Years – 05-15
Hub PCD – 5 x 114.3
Hub Bolt/Stud Thread – M12 x 1.5
OE Offset – ET55
Spigot – 67.1mm
Notes –

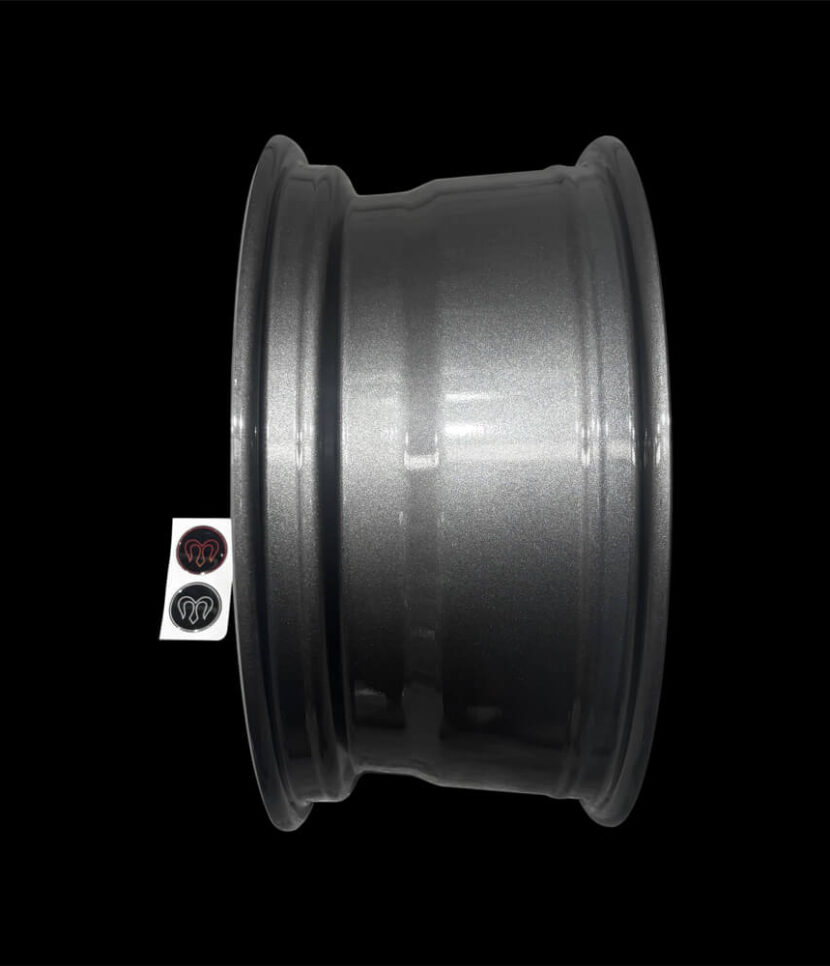

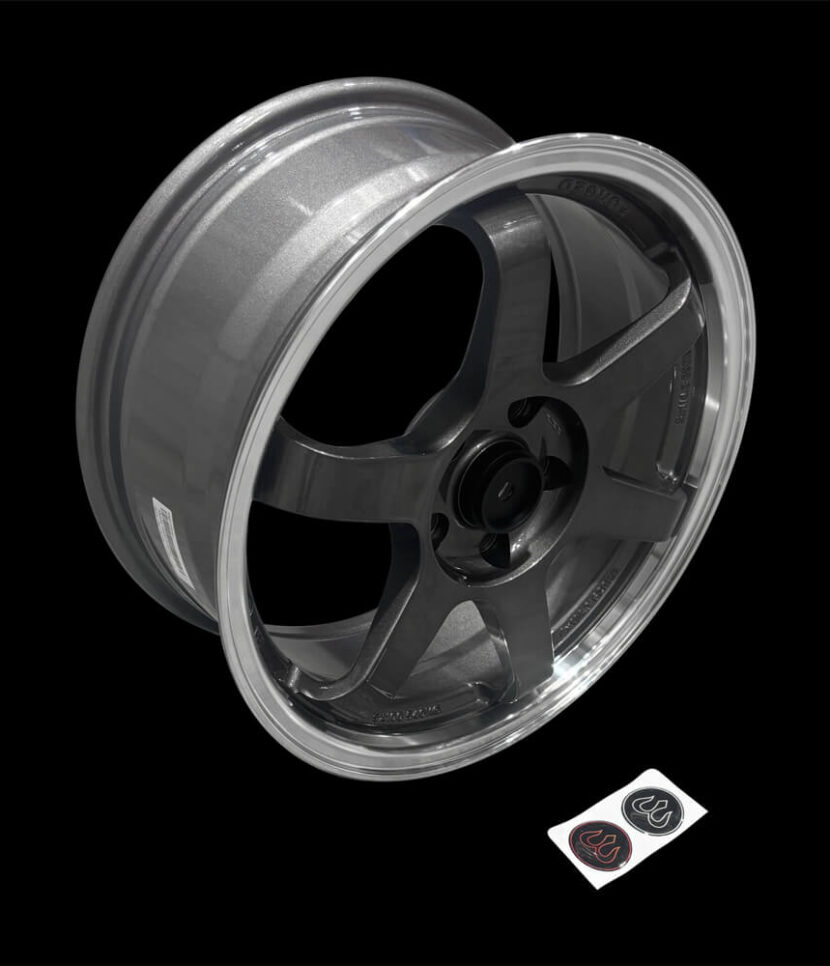

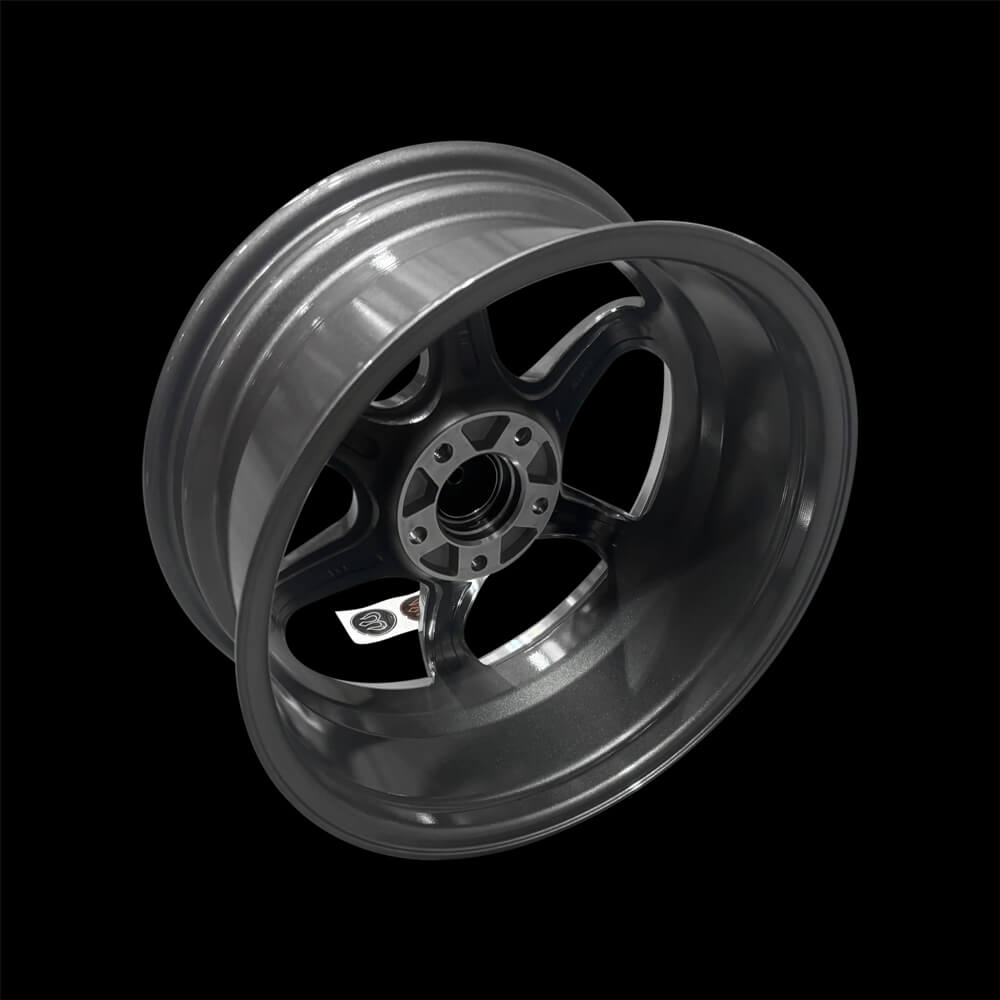

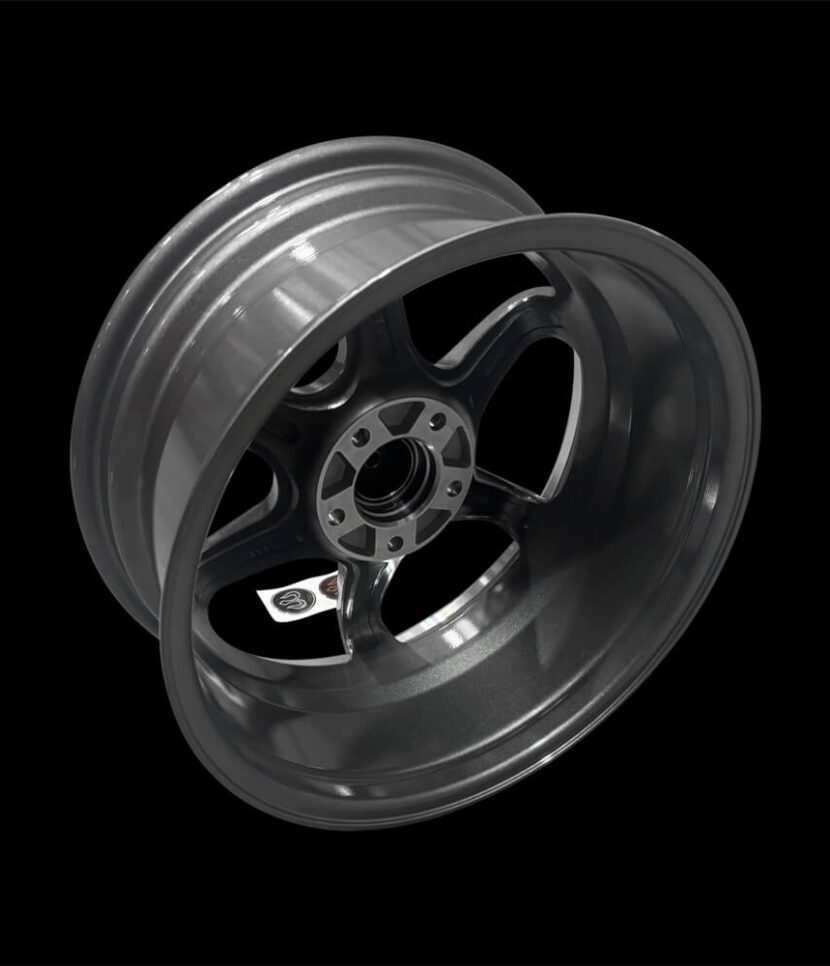

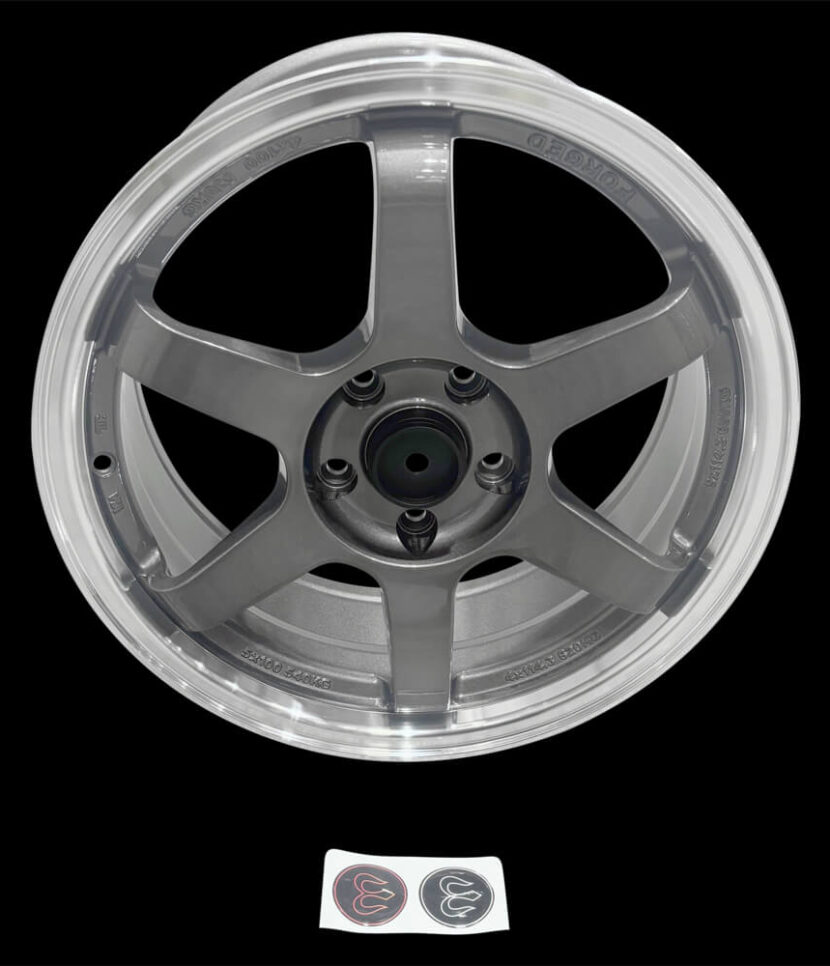

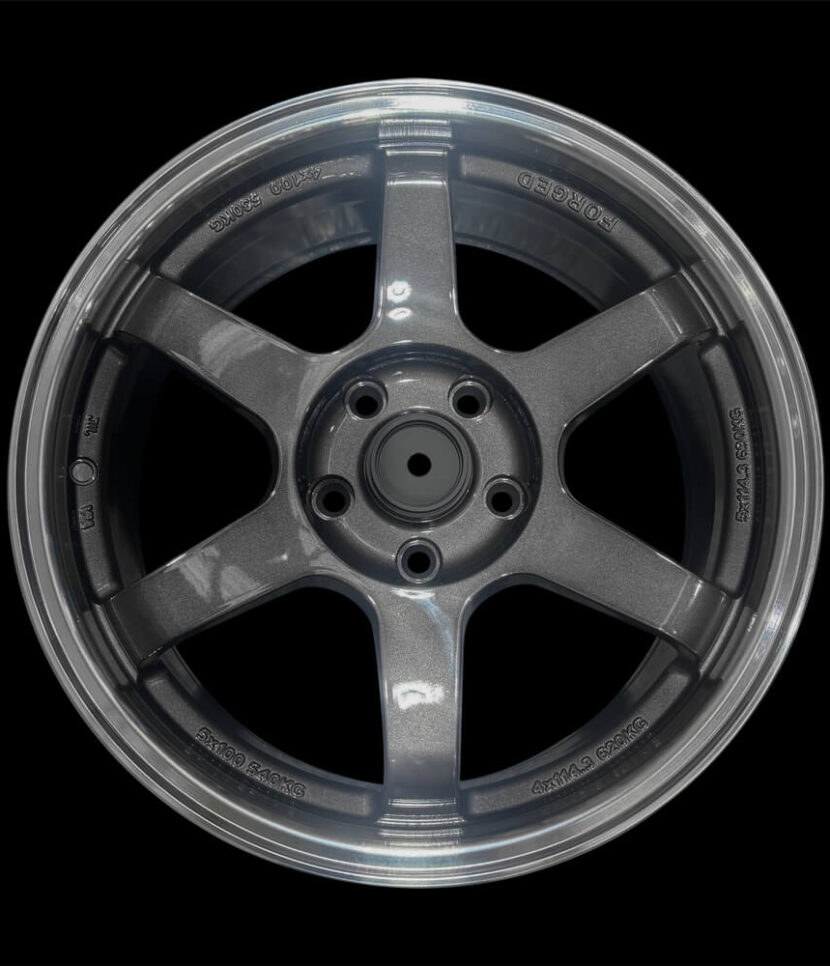

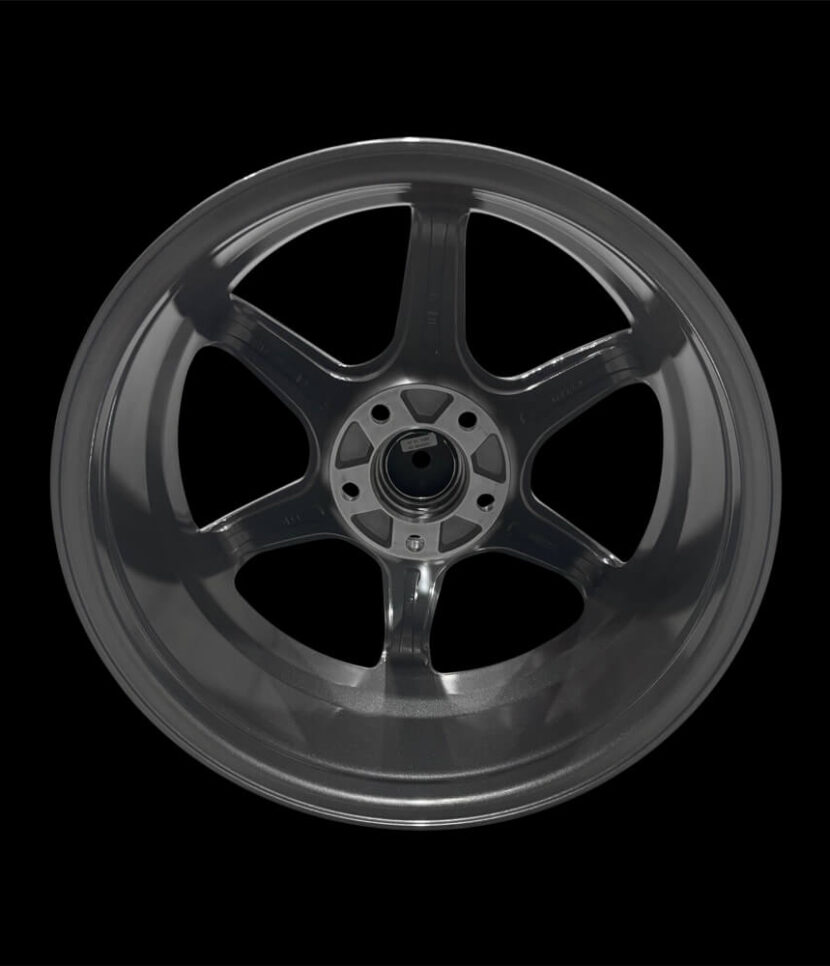

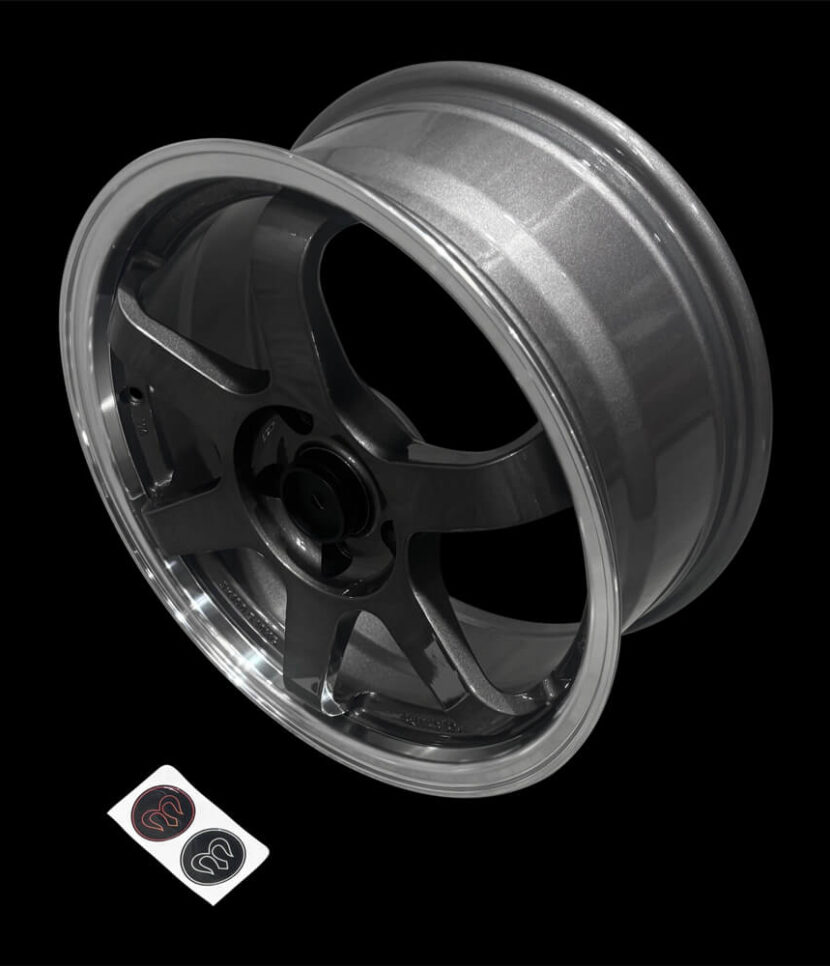

Wheel Data:

Colour – Grey/Polished
Style – 6 Spoke
Material – Aluminium
Construction – One Piece Cast
Diameter – 17
Width – 7.5
Wheel PCD – 5 x 114.3
Offset – 38ET
Pocketed – Yes

Barbarian Racing BDW Wheels

The Barbarian Racing wheels are only available in a 5 x 114.3 PCD which means less options to hold in stock and greater availability. If your car doesn’t use a 5 x 114.3 PCD then a hub adapter will be supplied. The details of any spacer can be found above along with the theoretical PCD which is what we have used to calculate the extra poke once fitted. Should you damage a wheel/s then replacements are available as singles.

Fitment considerations

Arch clearance – Our calculations are done from OE wheel fitment data which does not indicate the distance the wheel arch is from the hub. Before buying, be sure to measure your arch clearance and if in doubt, contact us prior to purchase.

Brake clearance – Brake caliper size data is not available and therefore we cannot confirm if the wheel will clear the caliper. If these wheels are the same size or larger than what is currently on the car, you will likely have no cause for concern here. If however, you are downsizing the wheels, it’s important to check clearance.

Weight	30 kg
Dimensions	60 × 60 × 100 cm
Colour	Grey/Polished
Finish	Gloss & Polished
Wheel Style	6 Spoke
Material	Aluminium
Construction	One Piece
Wheel Diameter	17
Rim Width	7.5
Rim Offset ET	38
Car Side PCD	5 x 114.3
PCD Conversion	No
Wheel Spacer Included	No
Stud Conversion?	No
Number of Studs	5
Stud Diameter	114.3mm
Manufacturer	Mazda
Model	MX5 Mk3
Chassis Code	NC
Production Years	05-15
Fitted Offset (ET)	38
Extra Poke Over OE Wheel (mm)	17
Wheel Nuts	17mm – Black
Notes	n/a
Package Quantity	4
