BMW M3 G8* 130R Bucket Seat Package 20->

Vehicle-Specific Barbarian Racing Seat Package for BMW M3 G8* 20->

About the BMW G8x M3 Fitment

The G8x M3 has enormous performance potential, and a dedicated performance seat can make the driving position more appropriate for repeated hard road or circuit use. This package combines the selected Barbarian Racing seat with the vehicle-specific fitting components required to mount it correctly.

Cabin and installation notes: The G8x is highly electronically integrated and original-seat specification varies considerably. Physical clearance is usually not the limiting factor; the electrical functions, occupancy sensing, airbags and warning systems associated with the OE seats require careful consideration during the conversion.

Vehicle Fitment

• Manufacturer: BMW
• Model: M3
• Chassis: G8*
• Production years: 20->

Seat Model and Specification

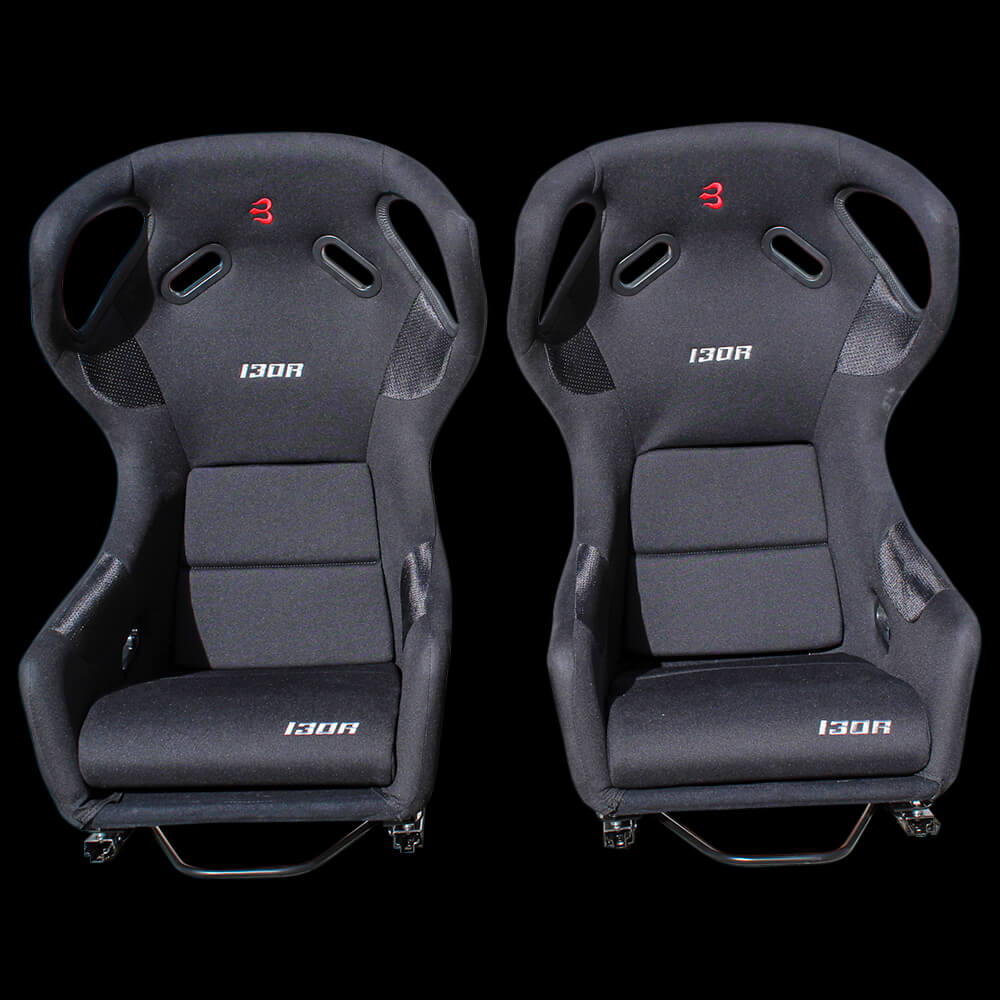

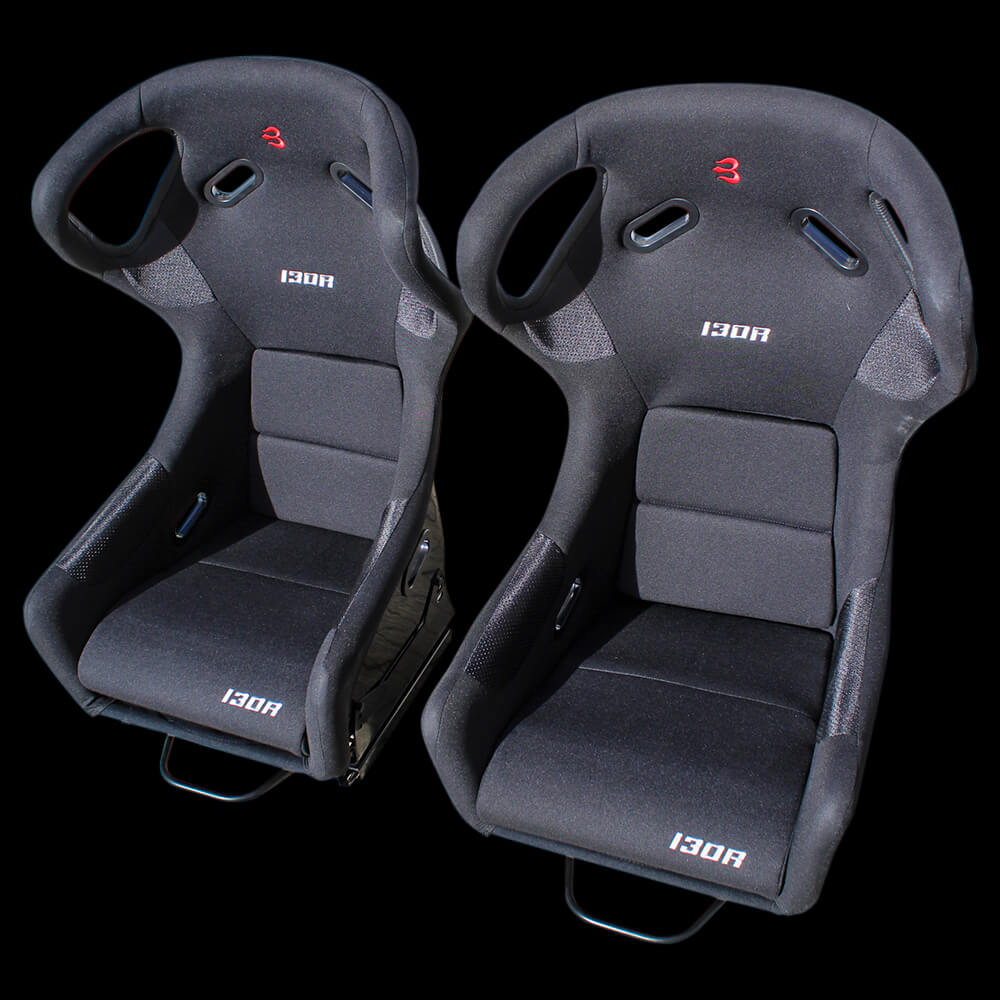

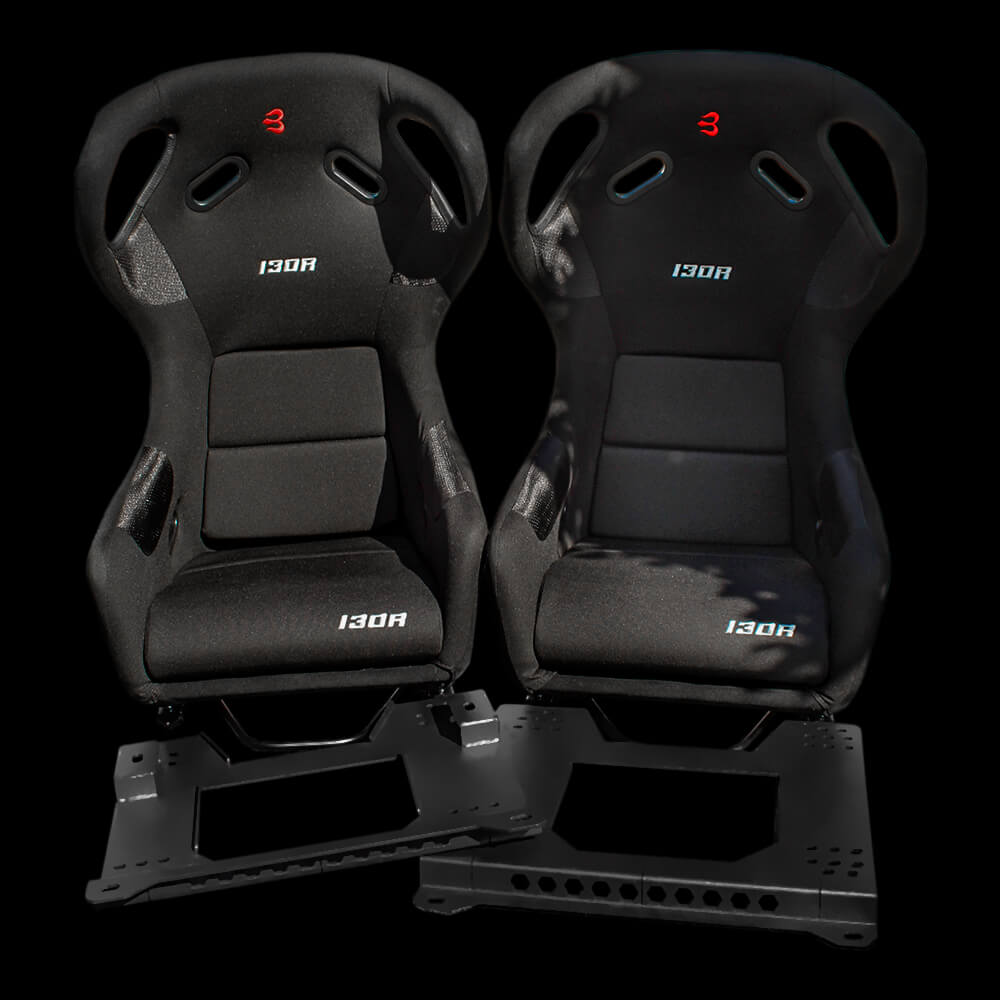

130R Wide Head-Support Fixed-Back Fibreglass Bucket Seat

The Barbarian Racing 130R combines a generous lower seating area with a high, wrap-around head-restraint design. At 54cm across the lower shell and 61cm at its widest upper point, it gives substantially more room around the hips and thighs than the compact DRUID, ASCARI or MINA designs.

Why choose the 130R? It suits drivers who want the visual and upper-body character of a more enclosed track-style seat but need more lower-body room than the narrower shells provide. The black performance-weave trim gives it a technical, modern finish.

Seat Specification

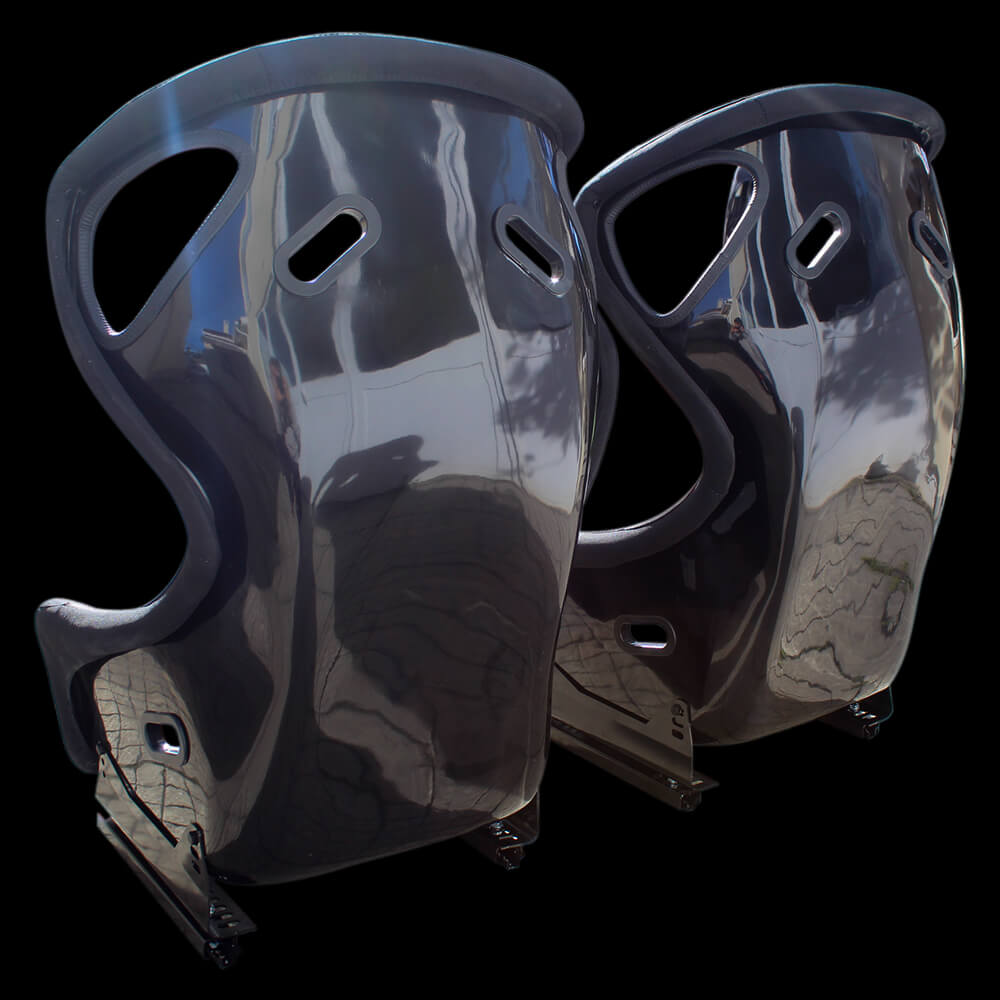

• Construction: Fibreglass
• Mounting: Side mount
• Back type: Fixed
• Trim: Black performance weave
• 5/6-point harness aperture: Yes

Dimensions

• Rear cushion: 35cm
• Front cushion: 40cm
• Cushion depth: 45cm
• Maximum lower width: 54cm
• Maximum upper width: 61cm
• Head-restraint inner width: 49.5cm
• Head-restraint depth: 20cm

Fit check: Allow at least 54cm around the lower shell and 61cm around the upper section, then check the head-restraint area against the B-pillar and roof.

Related Products

• 130R head-support fixed-back bucket seats

Weight	30 kg
Dimensions	105 × 54 × 60 cm
Part	Bucket Seat Package
Chassis Code	G8*
Sliders Included?	Yes
Production Years	20->
Important Notes	n/a
Steering Side	Either
Manufacturer	BMW
Construction	Fibreglass
Part Number	BSP-226
Model	M3
Engine Size	All
Engine Code	All
Seat Model	130R
Mount Type	Side Mount
Back Type	Fixed

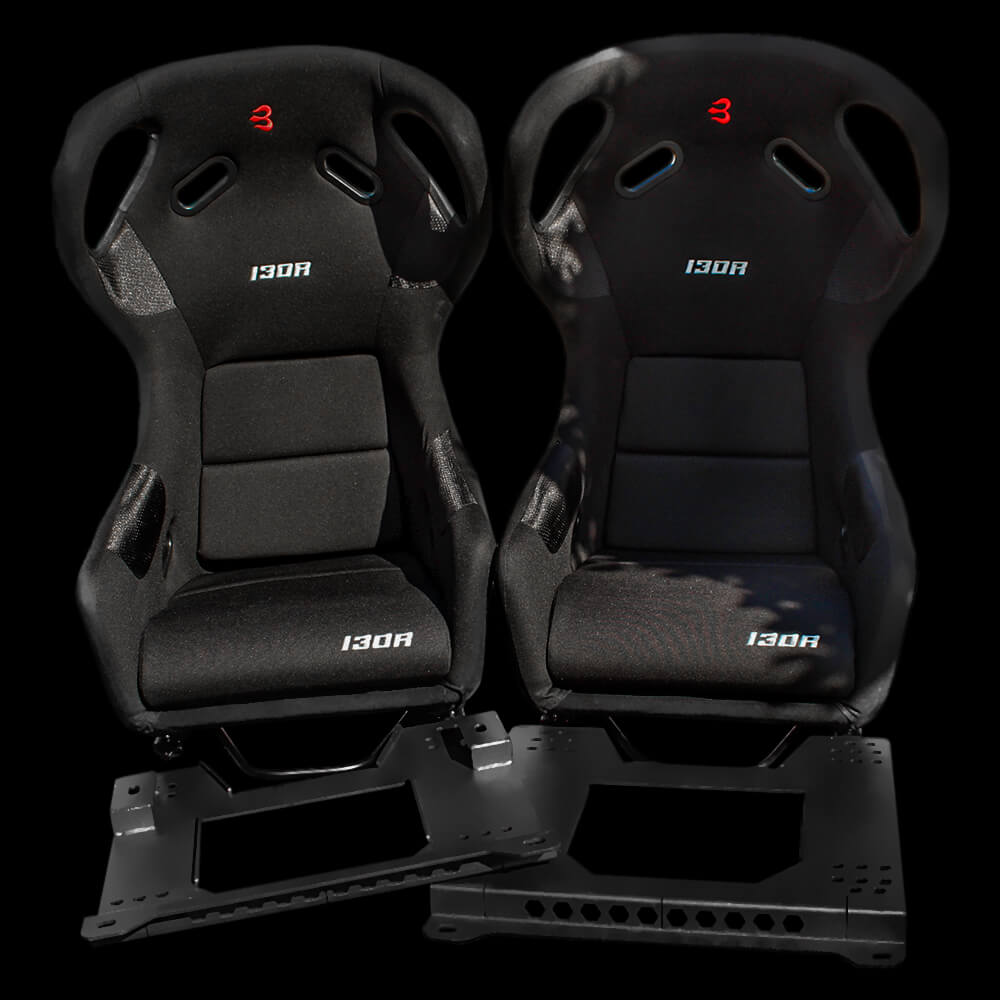

Fitting Kit Included?	Yes
