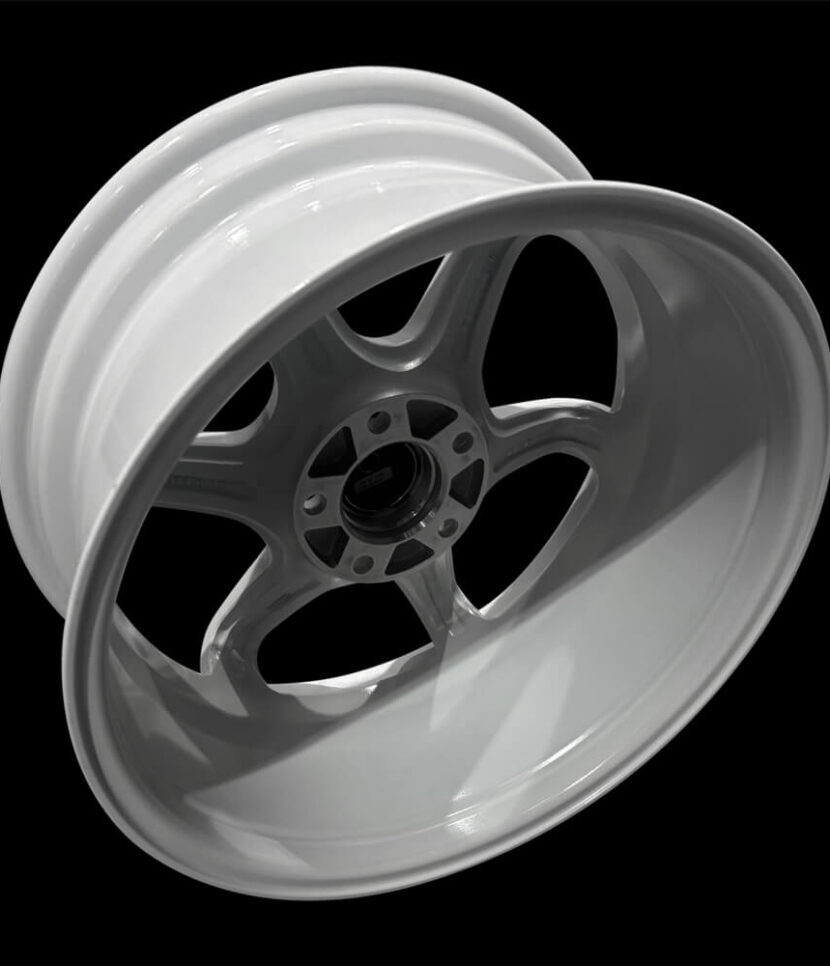

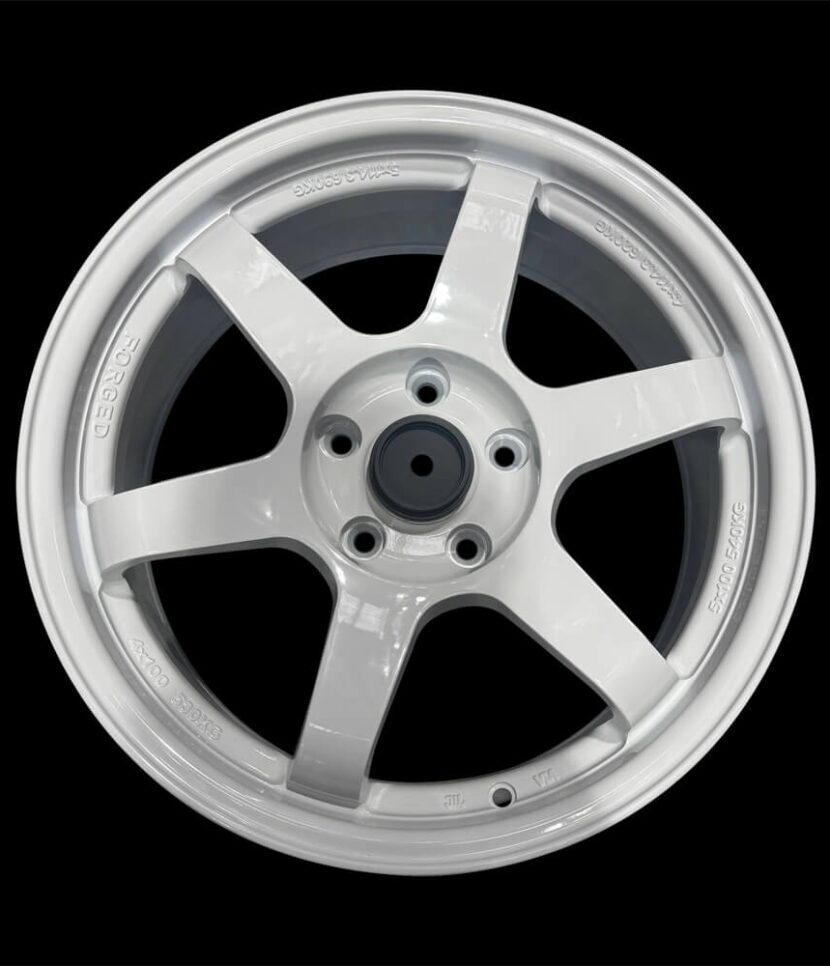

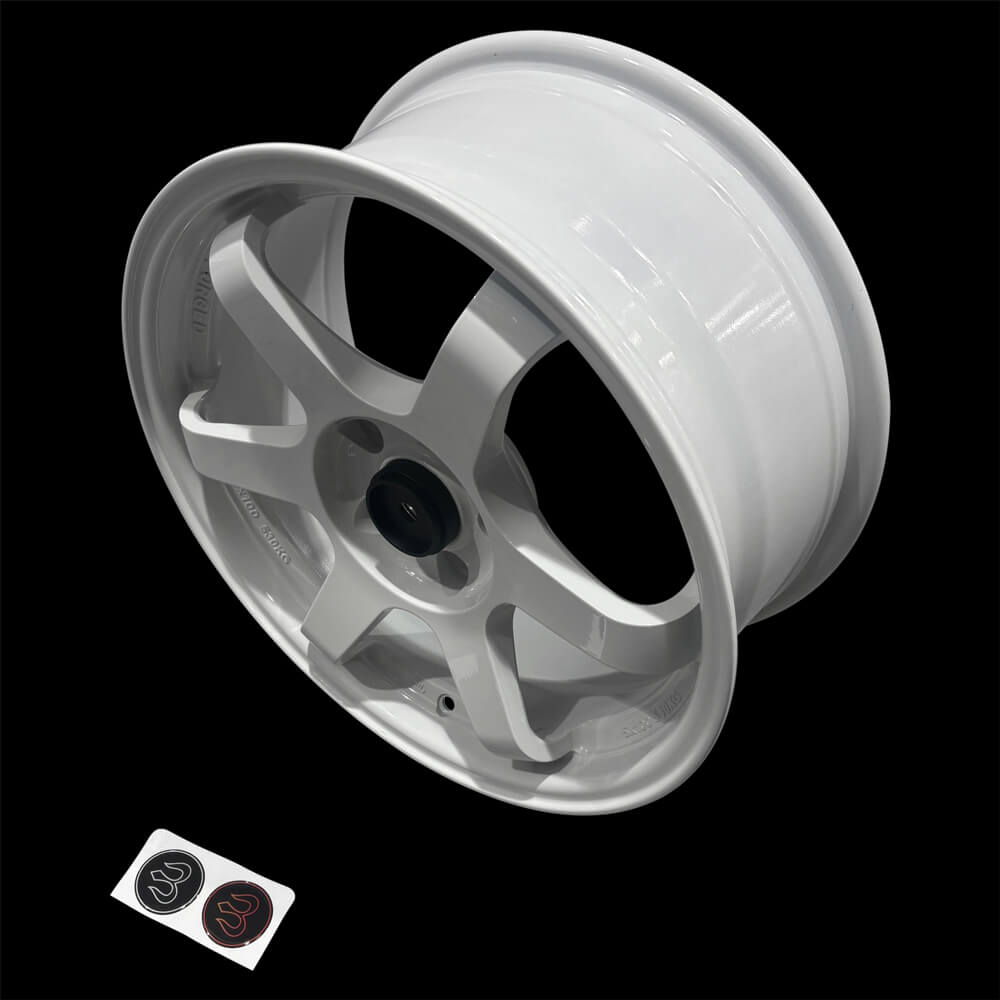

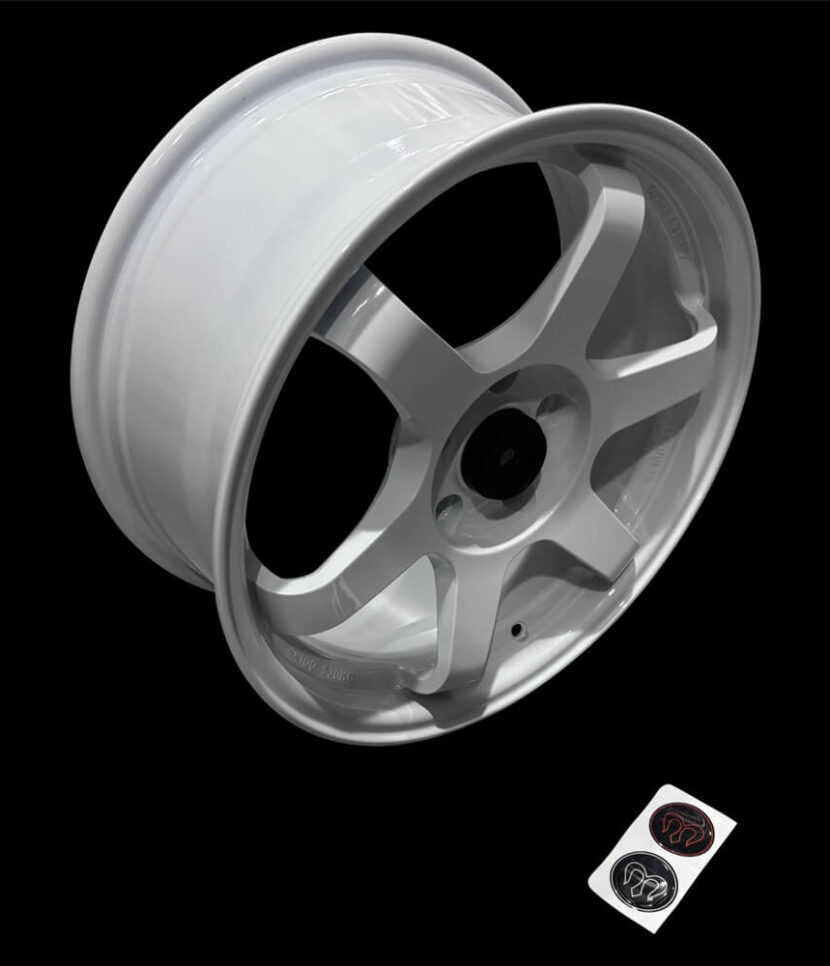

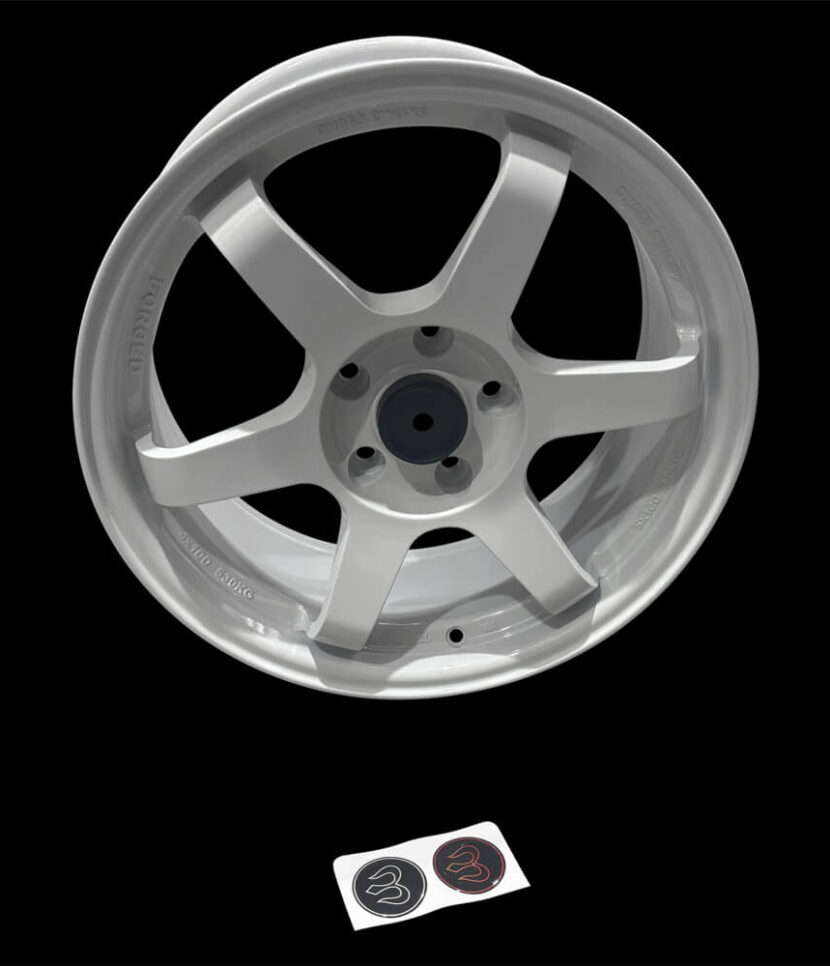

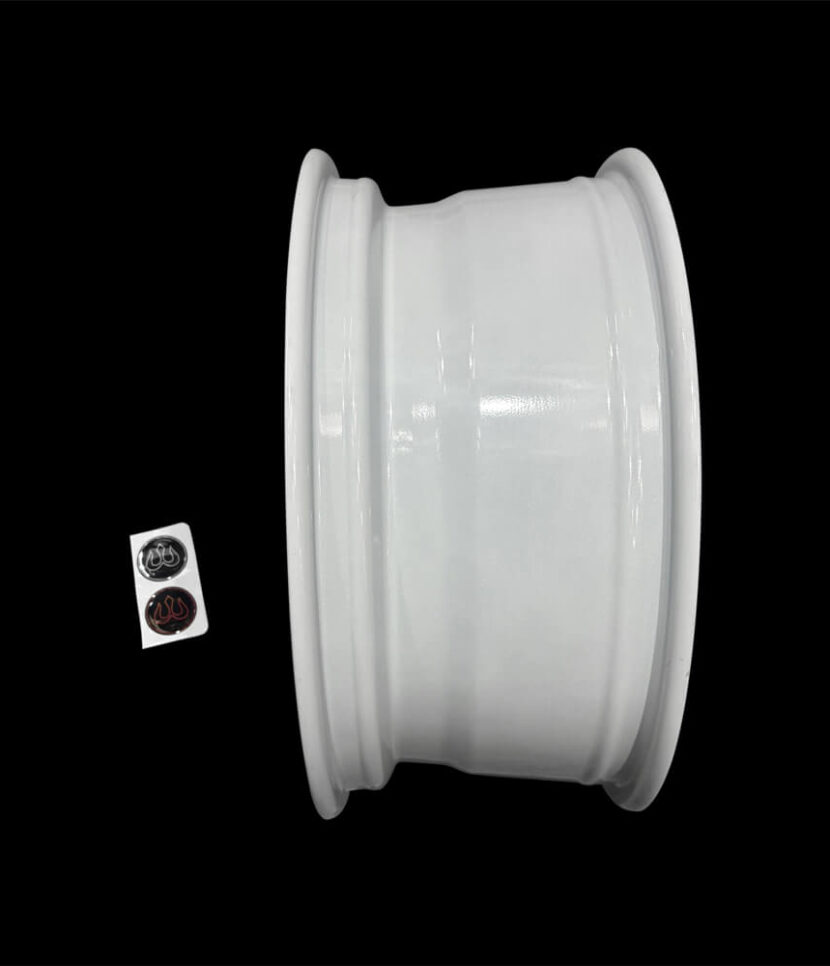

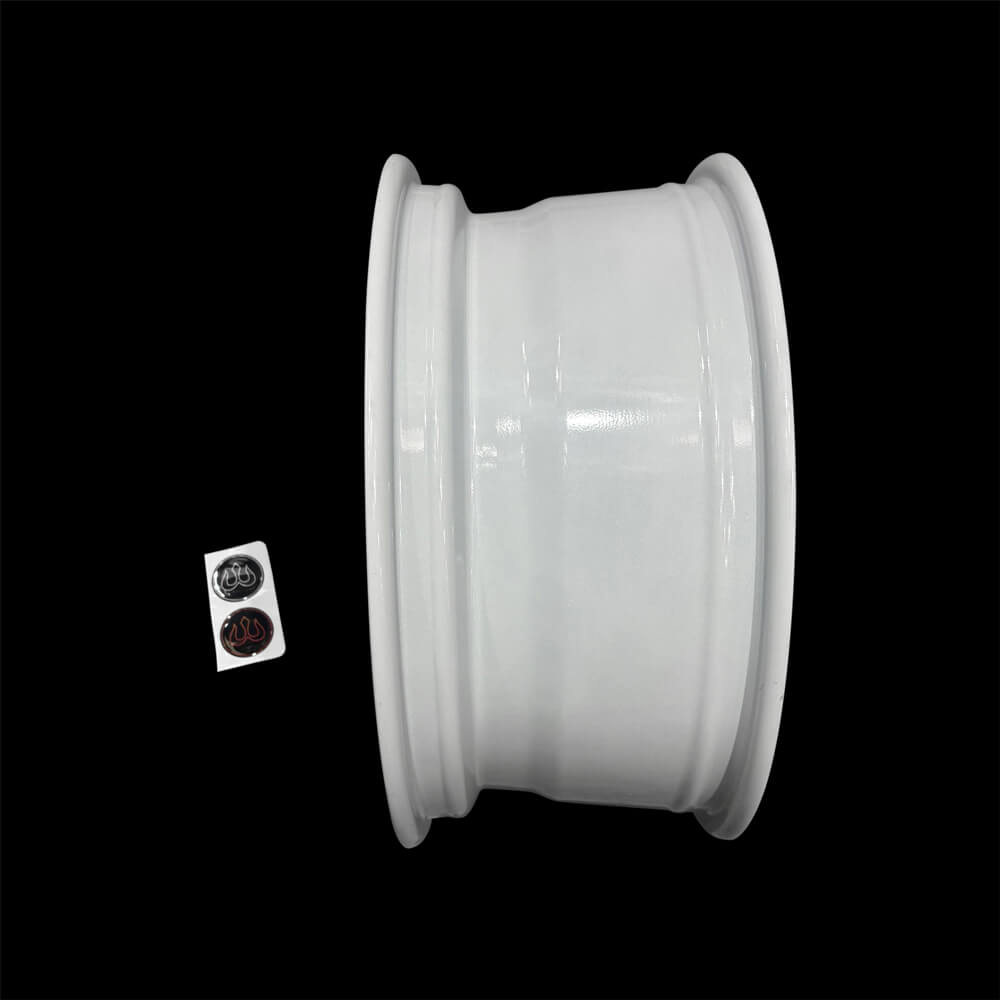

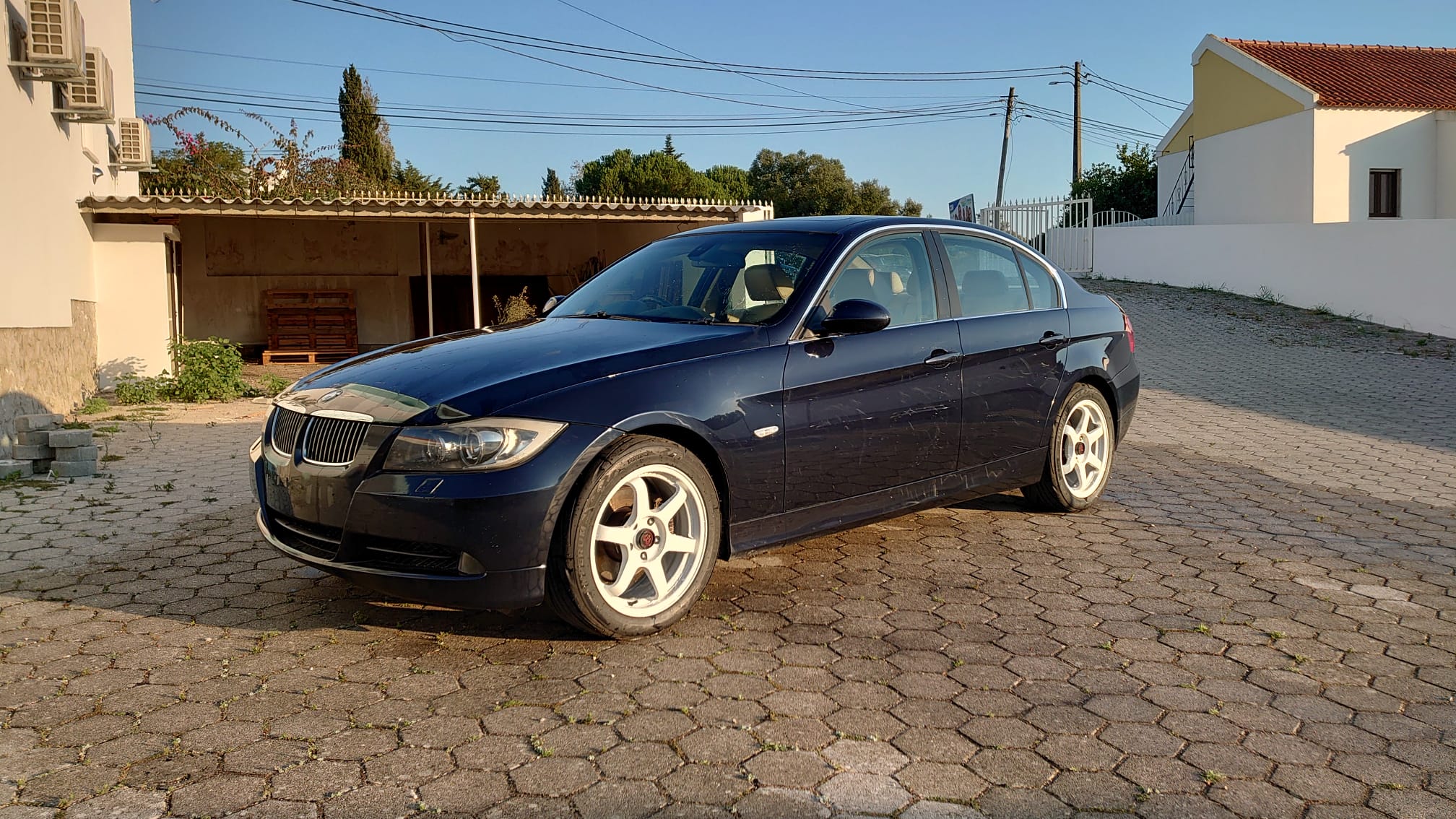

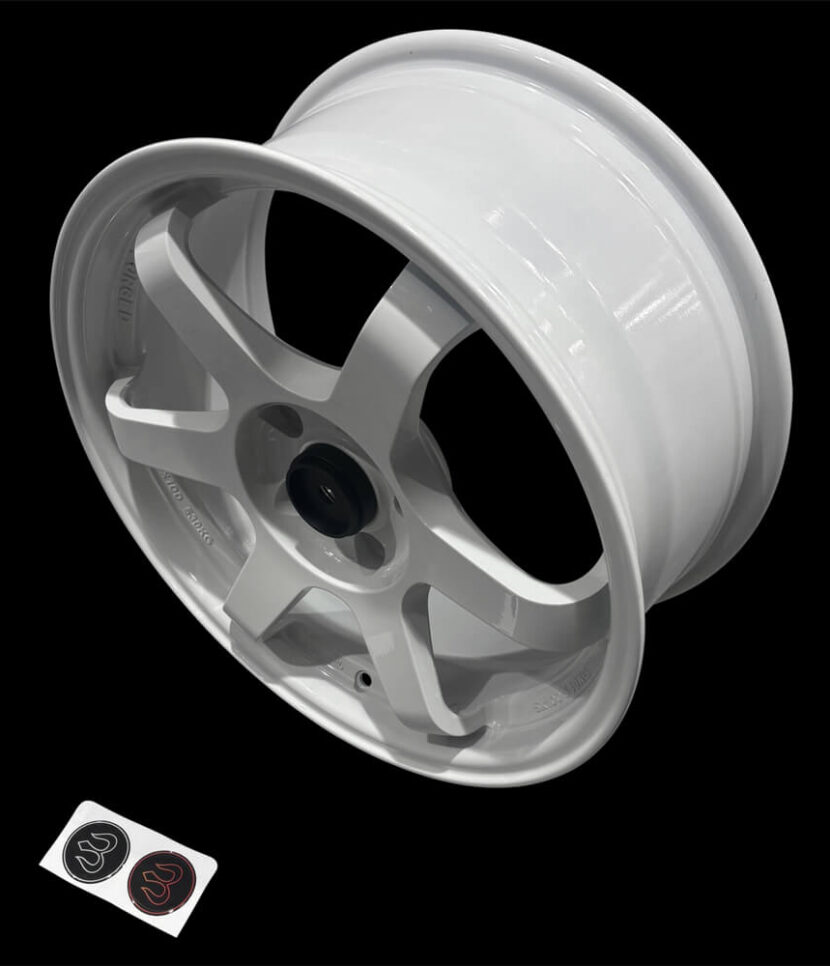

BMW E90/1/2/3 3-Series White 6 Spoke 17 inch Alloy Wheels, 04-16

This is a set of 4 wheels for the BMW 3-Series 04-16.

These wheels are supplied with the required hardware to fit them to the car.

Tyres are not included.

They are a 17 inch by 7.5 inch wheel (17 x 7.5) and are ideally suited to tyres in the 215 to 235 width range. These are common tyre sizes and therefore there is a wide range of tyres available from budget to slick options.

These have an offset when fitted with the supplied hardware of ET18. This means that they have around 16mm of poke over the standard wheels for the car.
Prior to ordering, please check you have the required arch clearance. If not, you will need to modify the arches for a safe fitment.

Product Fitment Data:

Additional Poke – 16mm
Wheel Spacer Included? – Yes – 20mm
Stud Conversion? – Yes
Wheel Offset When Fitted – ET18
Wheel Nuts – 17mm – Black

Vehicle Fitment Data:

Make – BMW
Model – 3-Series
Chassis Code – E90/1/2/3
Production Years – 04-16
Hub PCD – 5 x 120
Hub Bolt/Stud Thread – M12 x 1.5
OE Offset – ET34
Spigot – 72.6mm
Notes – n/a

Wheel Data:

Colour – White
Style – 6 Spoke
Material – Aluminium
Construction – One Piece
Diameter – 17
Width – 7.5
Wheel PCD – 5 x 114.3
Offset – 38ET
Pocketed – Yes

Barbarian Racing BDW Wheels

The Barbarian Racing wheels are only available in a 5 x 114.3 PCD which means less options to hold in stock and greater availability. If your car doesn’t use a 5 x 114.3 PCD then a hub adapter will be supplied. The details of any spacer can be found above along with the theoretical PCD which is what we have used to calculate the extra poke once fitted. Should you damage a wheel/s then replacements are available as singles.

Fitment considerations

Arch clearance – Our calculations are done from OE wheel fitment data which does not indicate the distance the wheel arch is from the hub. Before buying, be sure to measure your arch clearance and if in doubt, contact us prior to purchase.

Brake clearance – Brake caliper size data is not available and therefore we cannot confirm if the wheel will clear the caliper. If these wheels are the same size or larger than what is currently on the car, you will likely have no cause for concern here. If however, you are downsizing the wheels, it’s important to check clearance.
