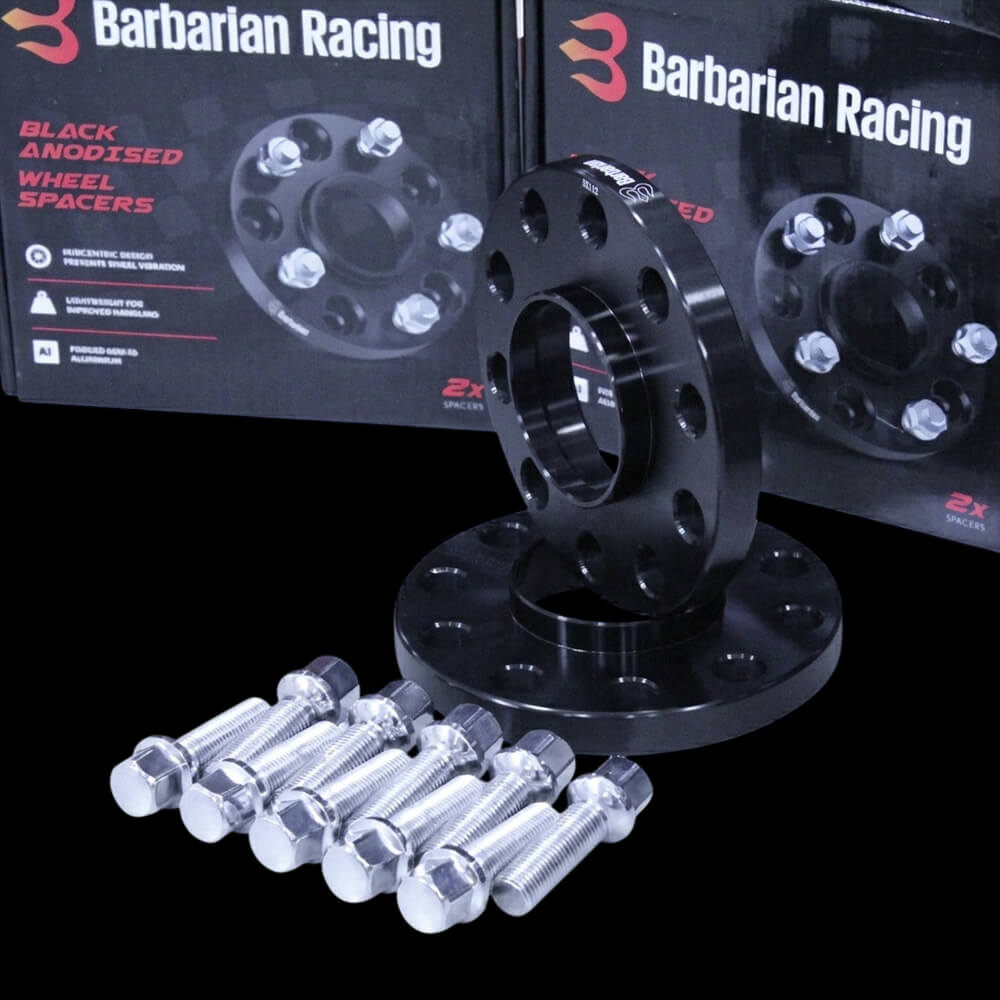

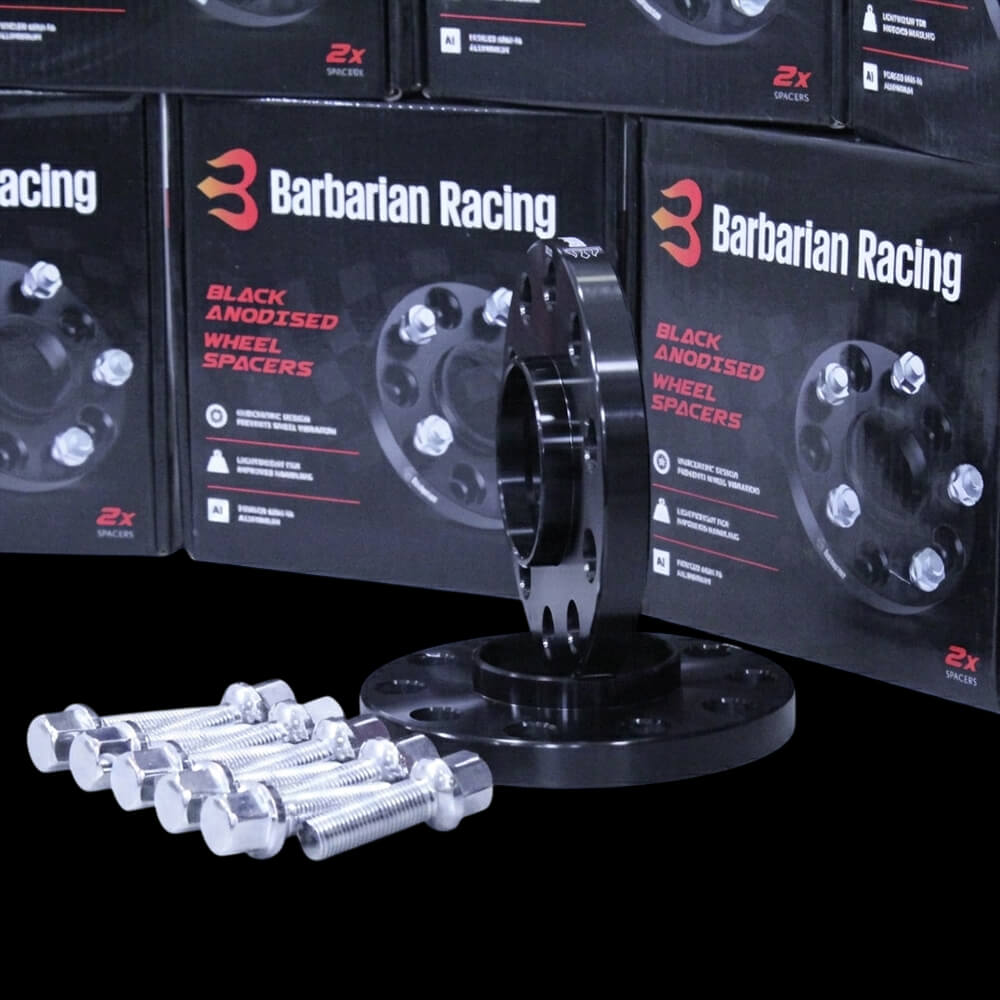

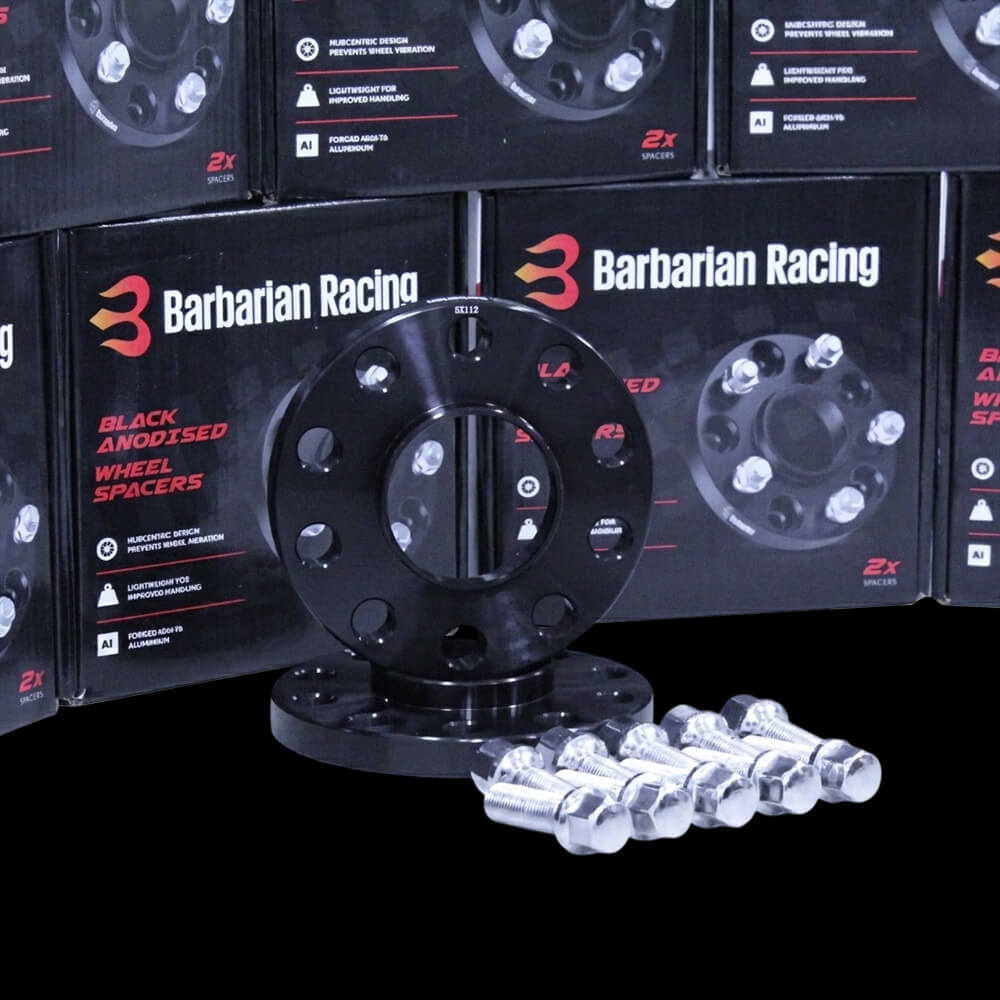

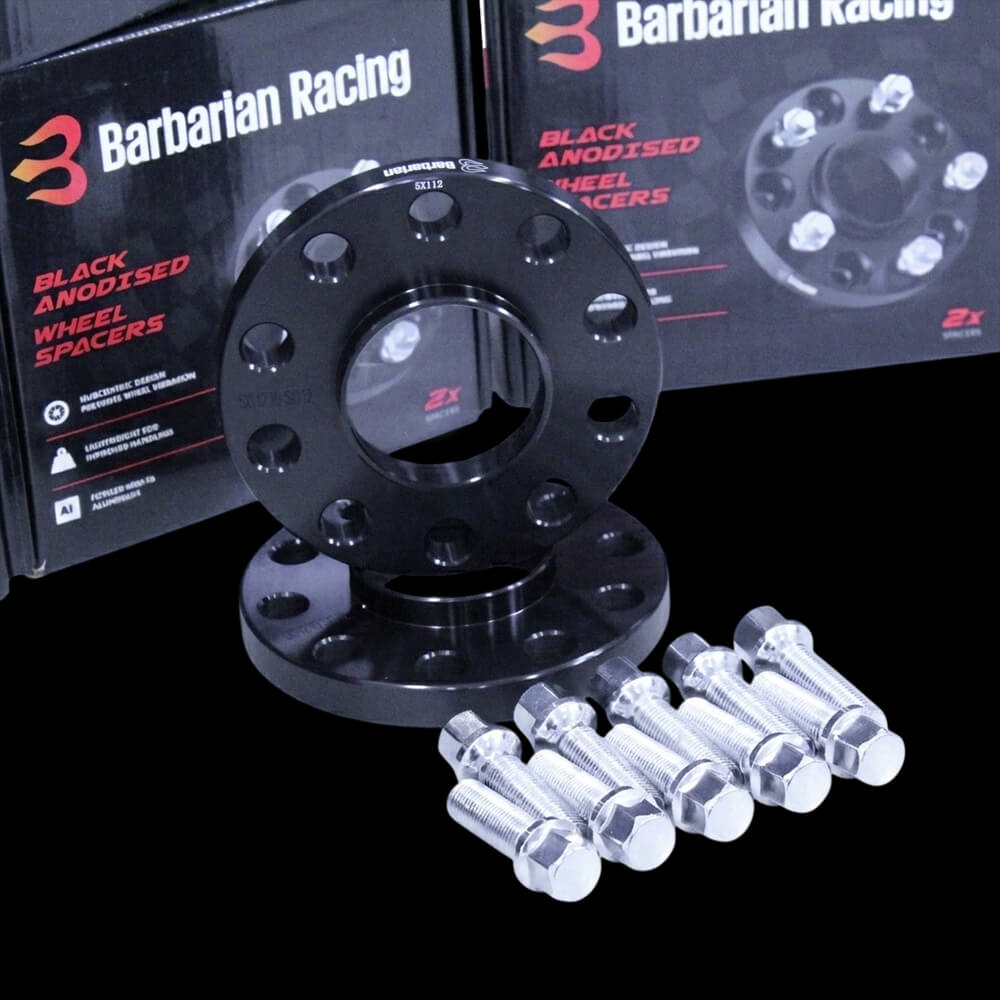

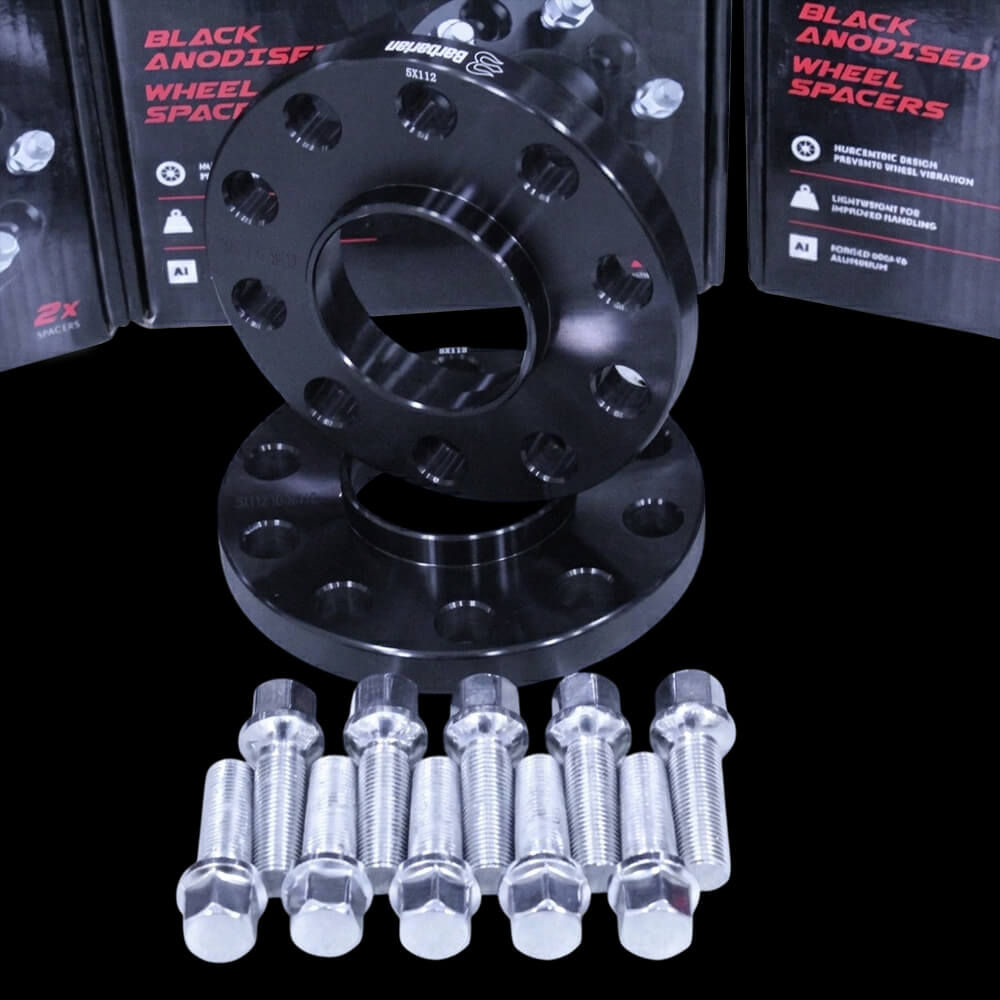

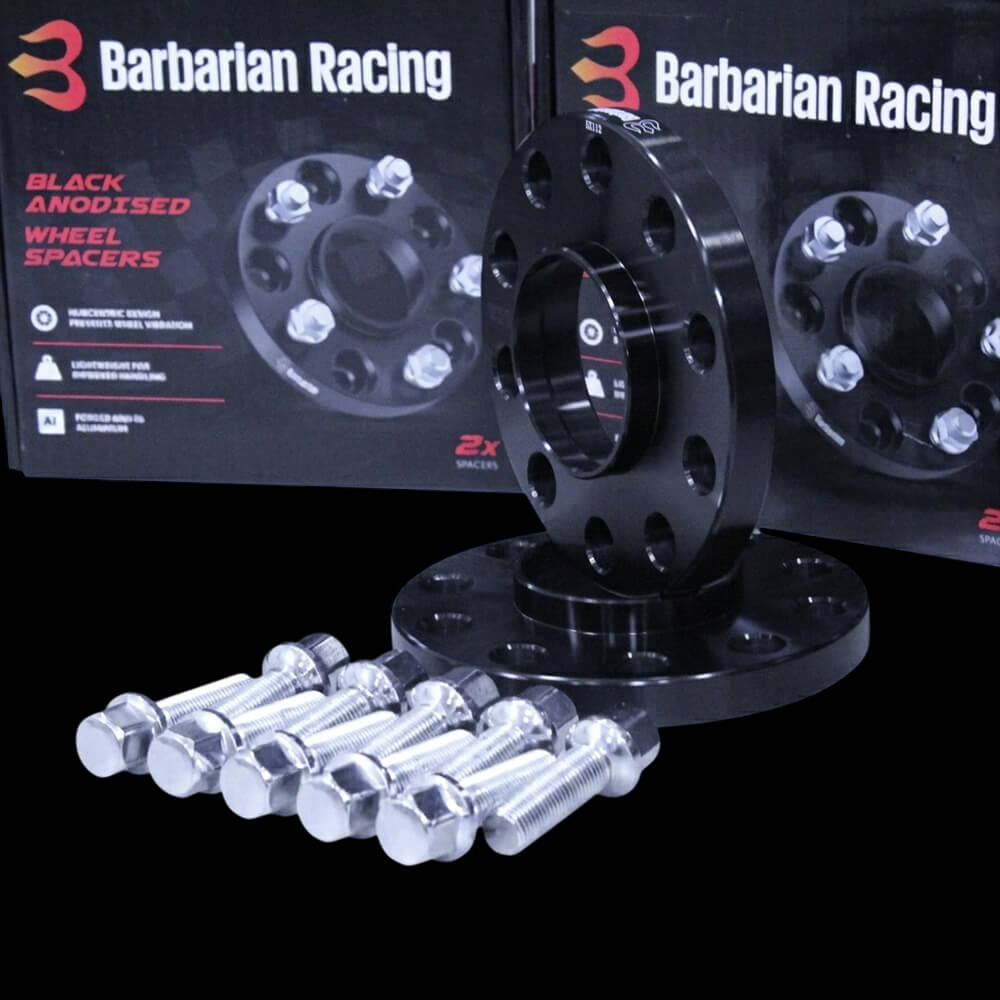

Black 20mm Mini F60 Countryman/S Wheel Spacers 15-24

A pair of wheel spacers for the F60 Countryman/S from 15-24.



These spacers are supplied as a kit and will space the wheels on the car by 20mm on each side. Made from 6061-T6 Aluminium and anodized black these spacers are corrosion resistant. Most of our spacers are hubcentric which means that they will be perfectly centred on the hub. Centering the wheel prevents vibration. See the specification below to confirm if these are hubcentric.



Spacing the wheels on the car gives a more aggressive stance and can also improve handling.



Spacer Specification:

Colour – Black
Thickness – 20mm
PCD – 5 x 112
Spigot – 66.5
Hubcentric – Yes
Material – 6061-T6 Aluminium
Finish – Anodized
Construction – Forged
Thread – M14 x 1.25



Vehicle Specification:

Make – Mini
Model – Countryman/S
Chassis – F60
Year – ’15-24
Note – 5 Door



Clearance Checking

– When fitting spacers it is important to ensure there is enough space in the wheel arch to clear the wheel and tyre. If there is not sufficient space to fit the spacers safely you will need to either roll the arches or modify the arches with a wide arch kit or similar.

– It is also vital that you check the wheel rotate freely after fitted and if using closed wheel nuts that they are not bottoming out on the studs.

PCD	5 x 112
Manufacturer	Mini
Car Side Stud Diameter	112
Internal Vehicle Code	F60
Clearance Information	See the description for details on checking required clearances
20mm Spacer Kit (Pair)	KWS-060
Spacer Part Number	KWS-060
Spacing (Each Side)	20
No. of Studs/Bolts	5
Wheel Nuts/Bolts	Bolts
Production Years	'15-24
Package Quantity	Spacers x 2, Bolts x 10
Weight Each (Kg)	#N/A
Construction	Forged
Make	Mini
Chassis Code	F60
Spacer Type	Bolt Through Spacer Kit
Bolts/Studs	Bolts
Hubcentric	Yes
Hub Thread	M14 x 1.25
Thread	M14 x 1.25
Spigot	66.5
Finish	Anodized
Years	15-24
Notes	5 Door
Model	Countryman/S
Thickness (mm) (Each Spacer)	20
