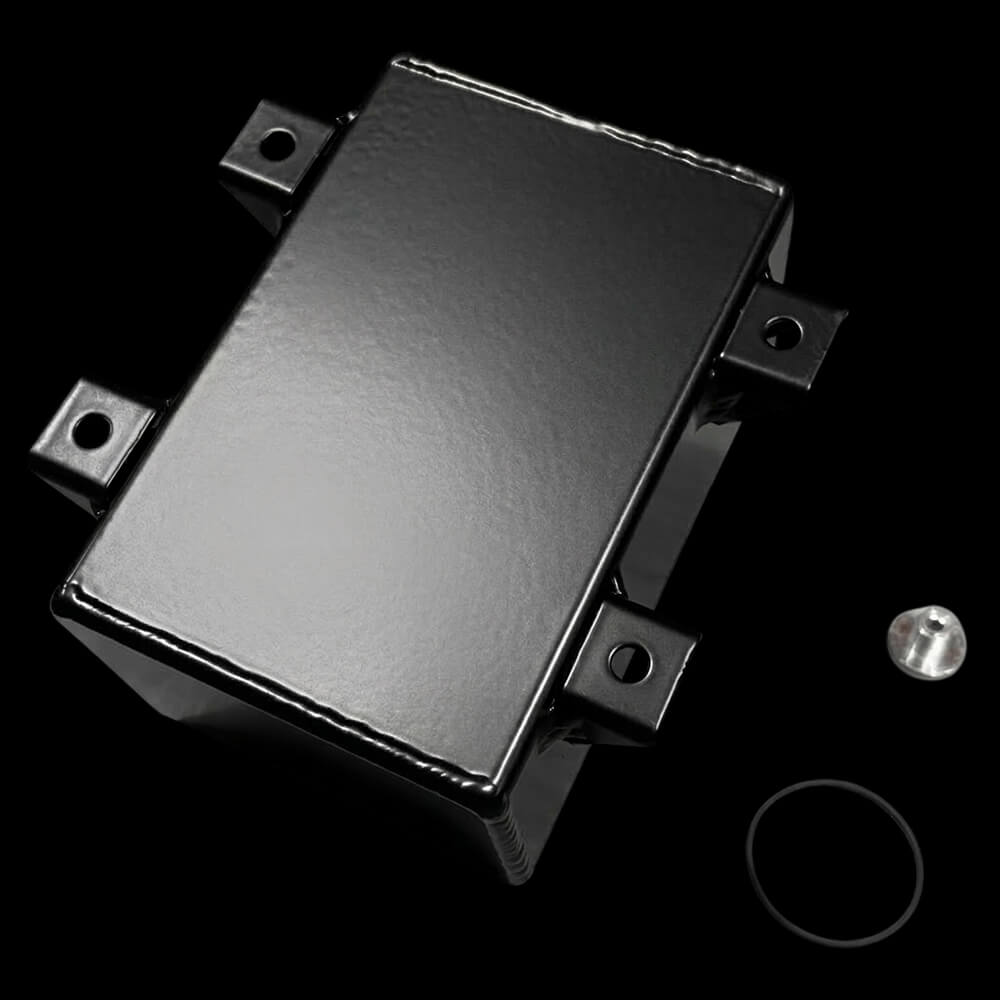

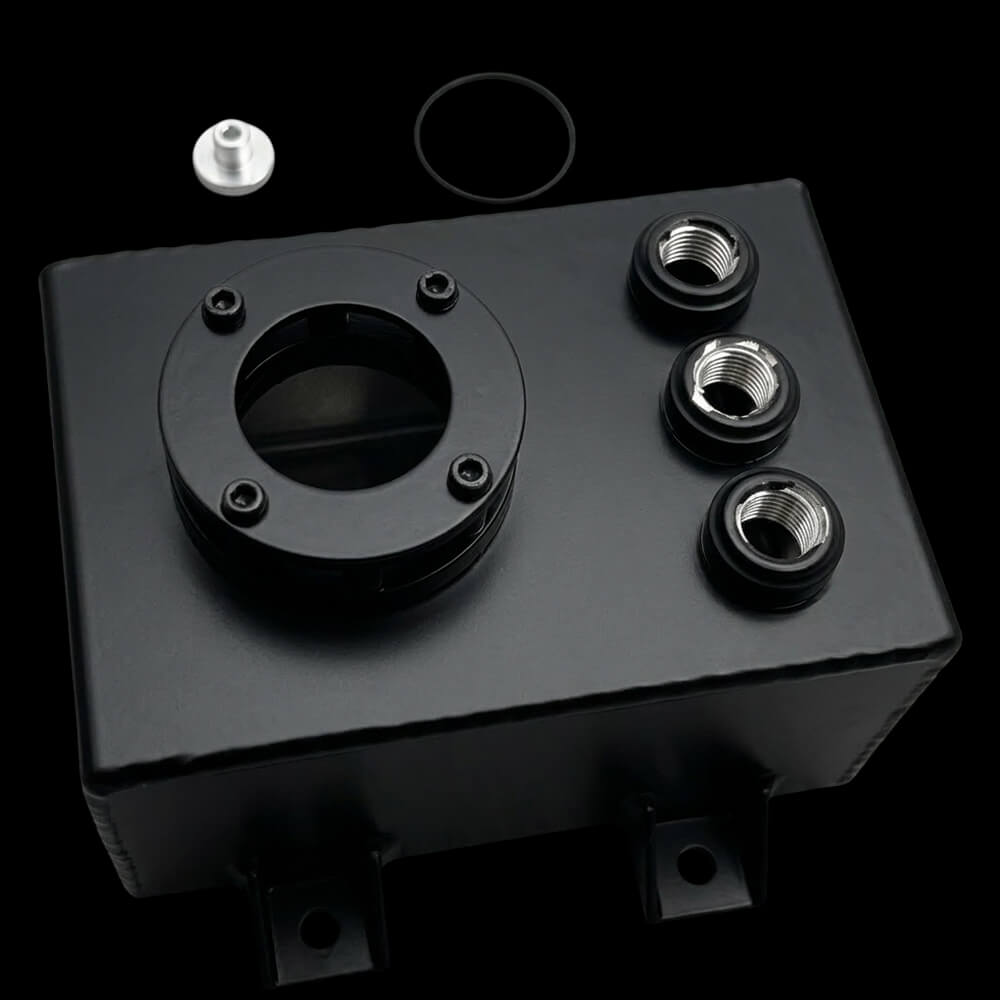

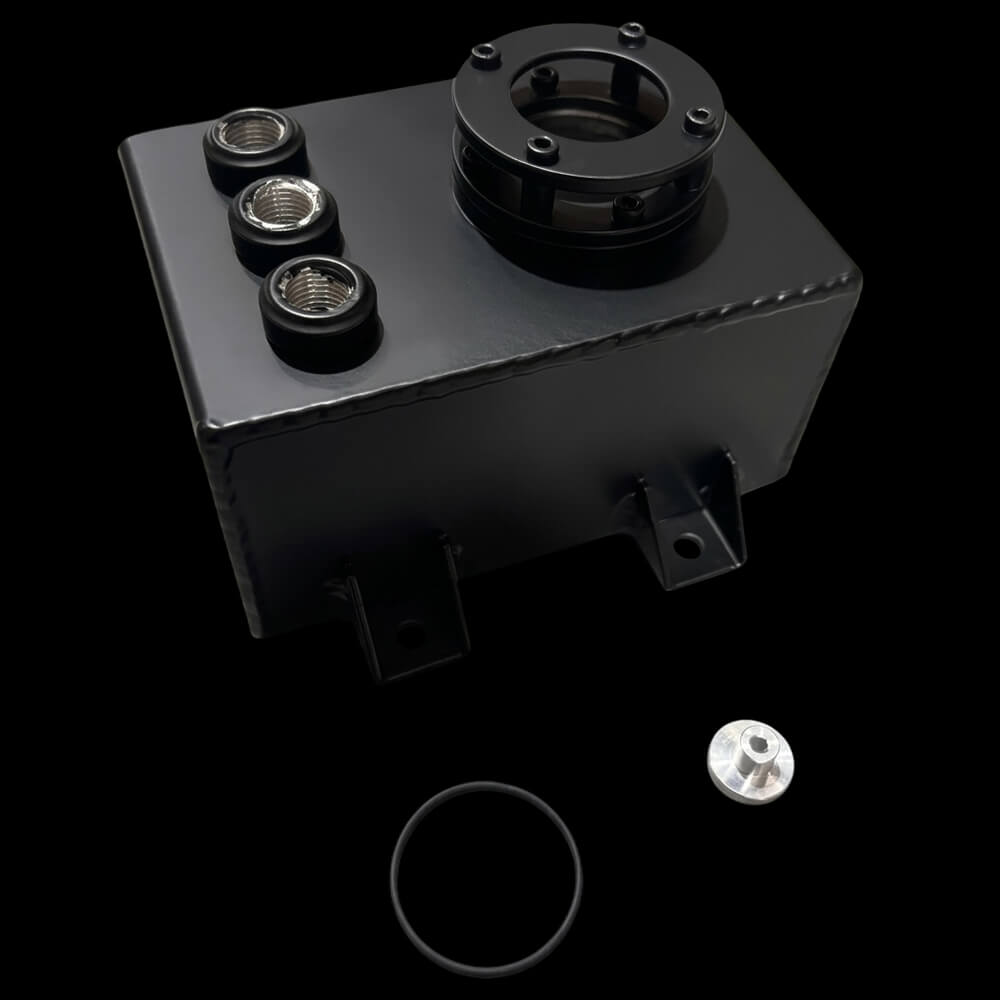

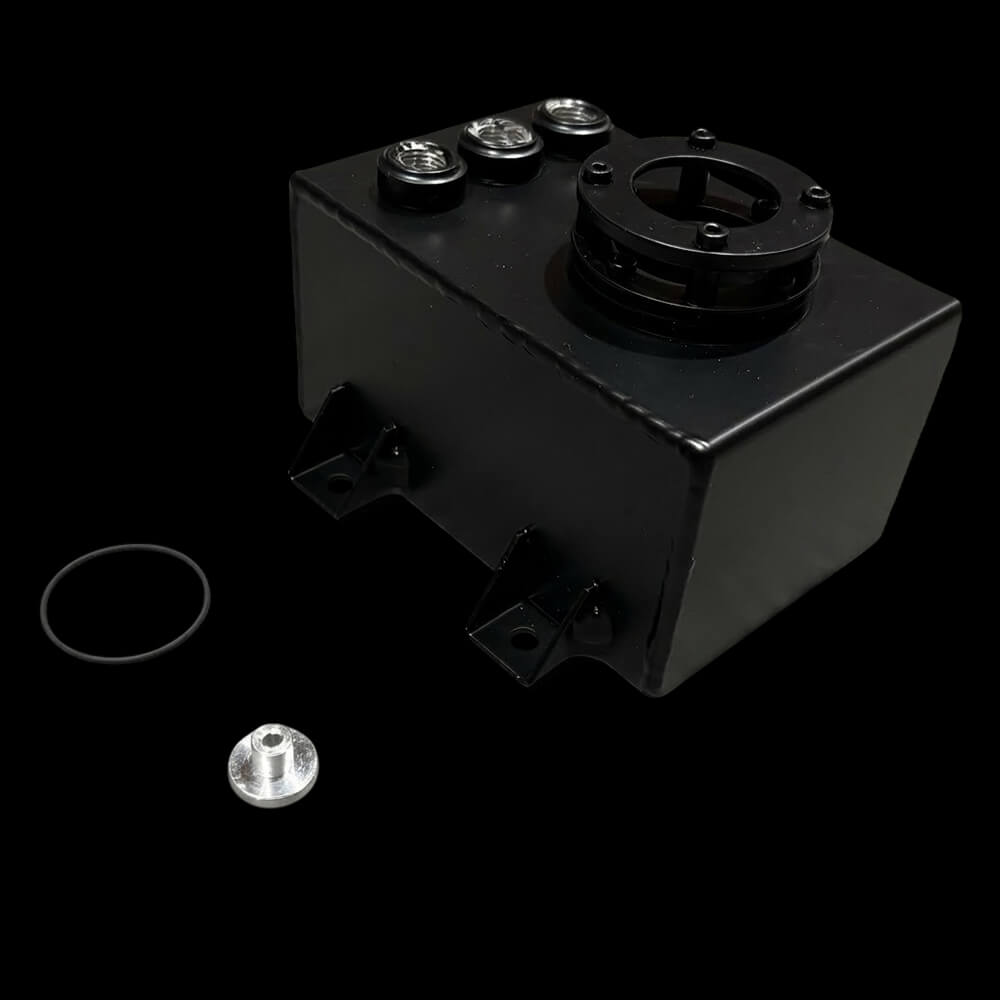

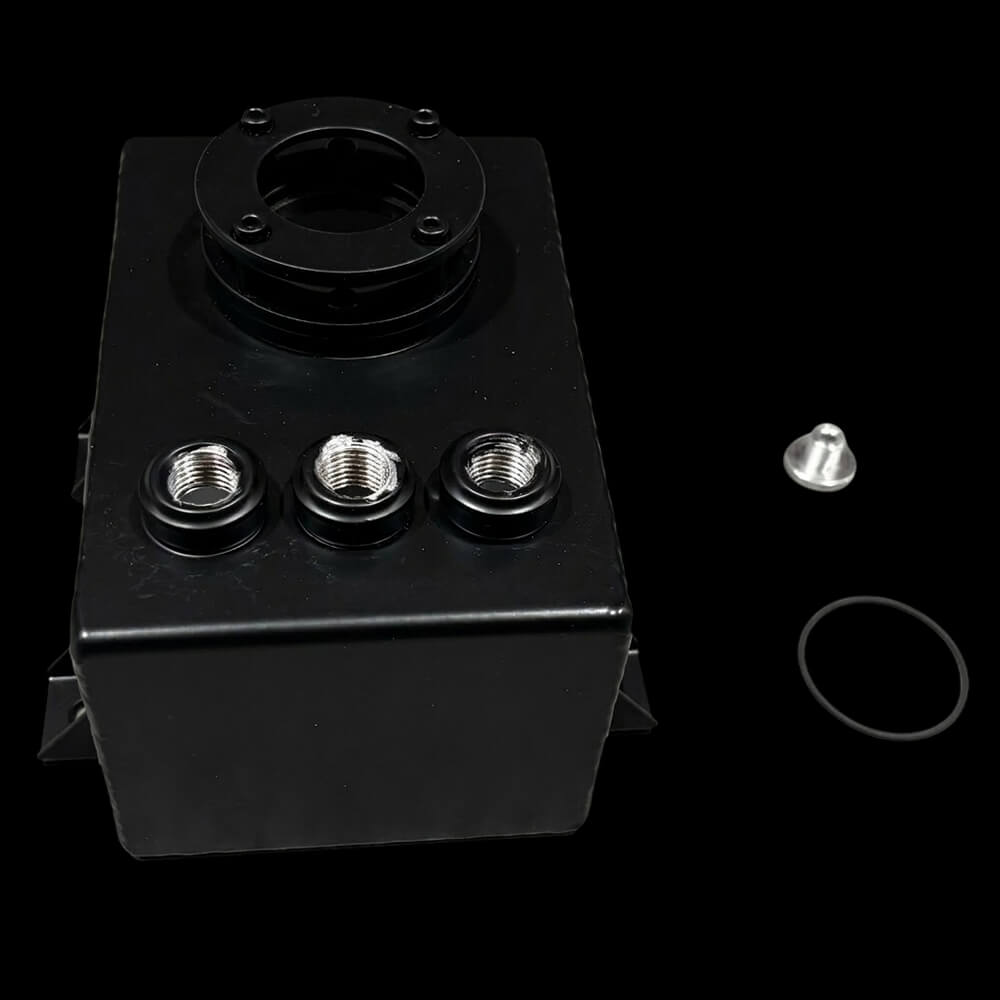

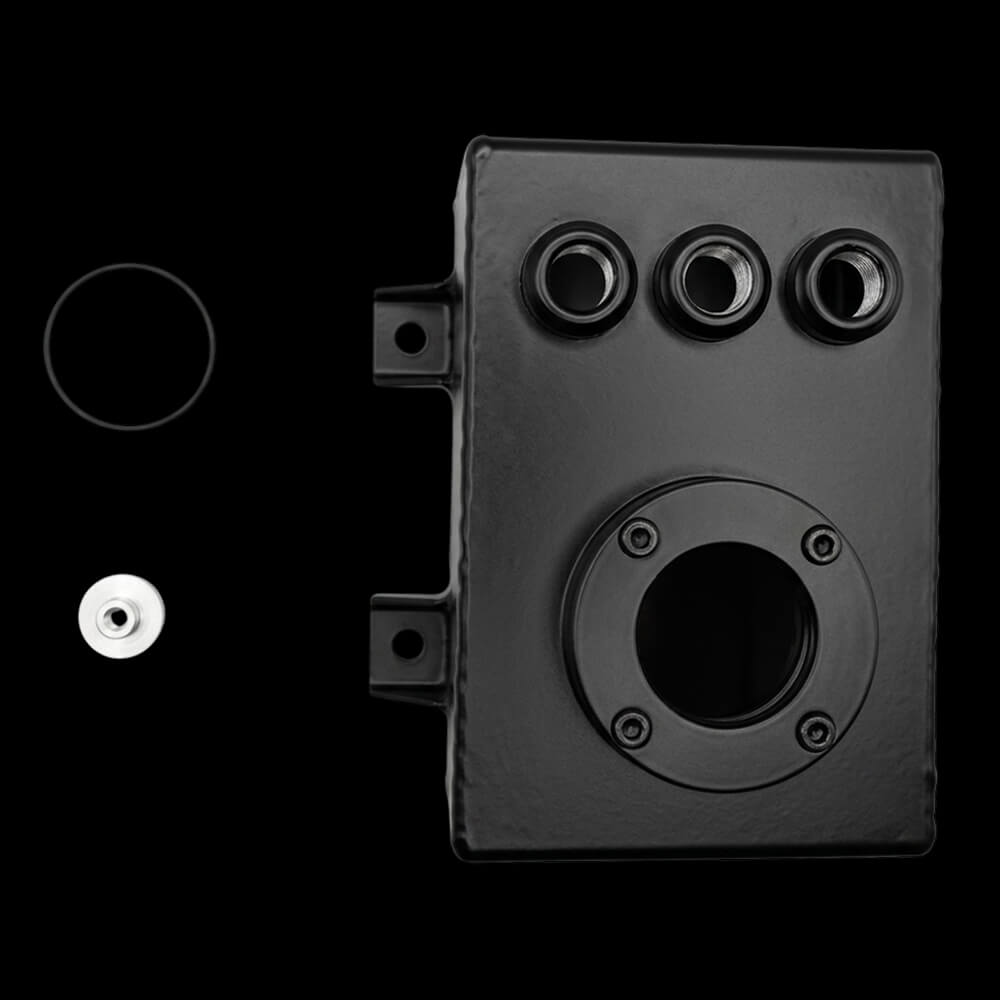

This black swirl pot uses a Walbro GS341 or GS342 type pump to create a compact fuel system. It has the 3 ports which means you can either run it the conventional way with lift pump in, tank return and rail return, or you can use a ticker pump at carb pressure and blank on of the ports. This means that if you are converting an older car from carb(s) to fuel injection you don’t need to change the fuel system too much. Just connect the current pump from the tank to this tank and then run from the Walbro pump through a filter to the injectors and then through a fuel pressure regulator and back to this tank. We have made this tank compact so it can be installed under the bonnet if required further simplifing the conversion. The tank will hold 1 litre of fuel and is made from aluminium with a black finish. The 3 ports on the top are threaded with an M14 x 1.5 thread. The mounting tabs have the ribs shown.
Dimensions | 15.5 × 23 × 18 cm |
---|---|
Brand | |
Country/Region of Manufacture | United Kingdom |
EAN | |
Manufacturer Part Number | |
Material | |
Colour |
