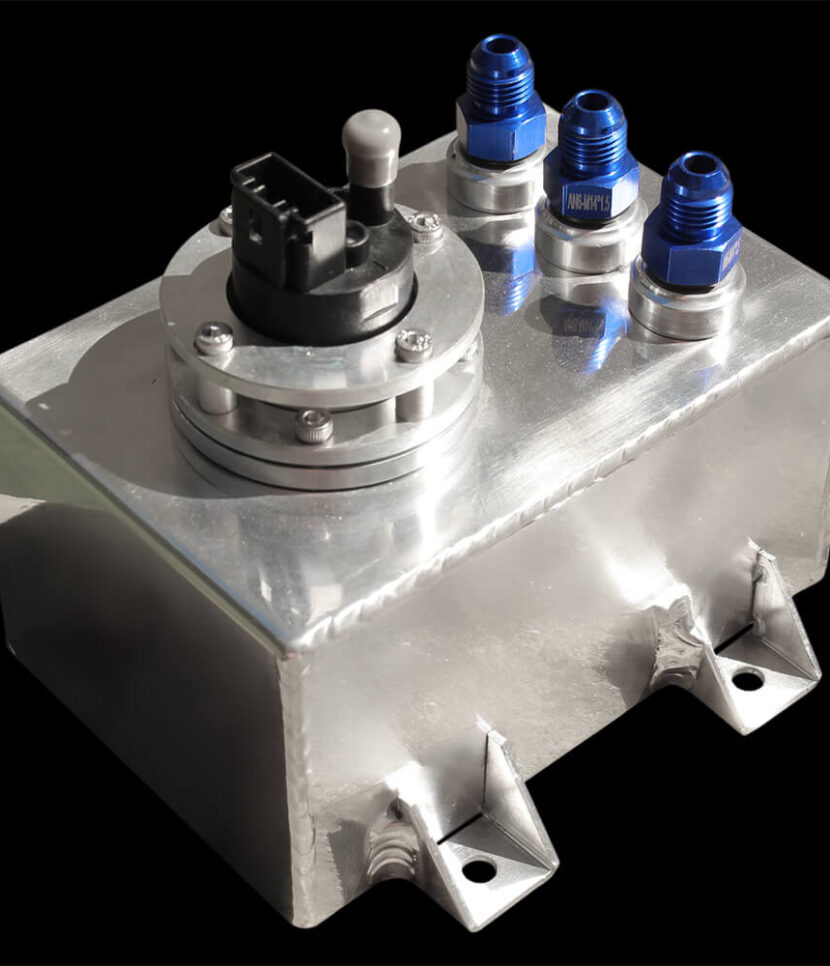

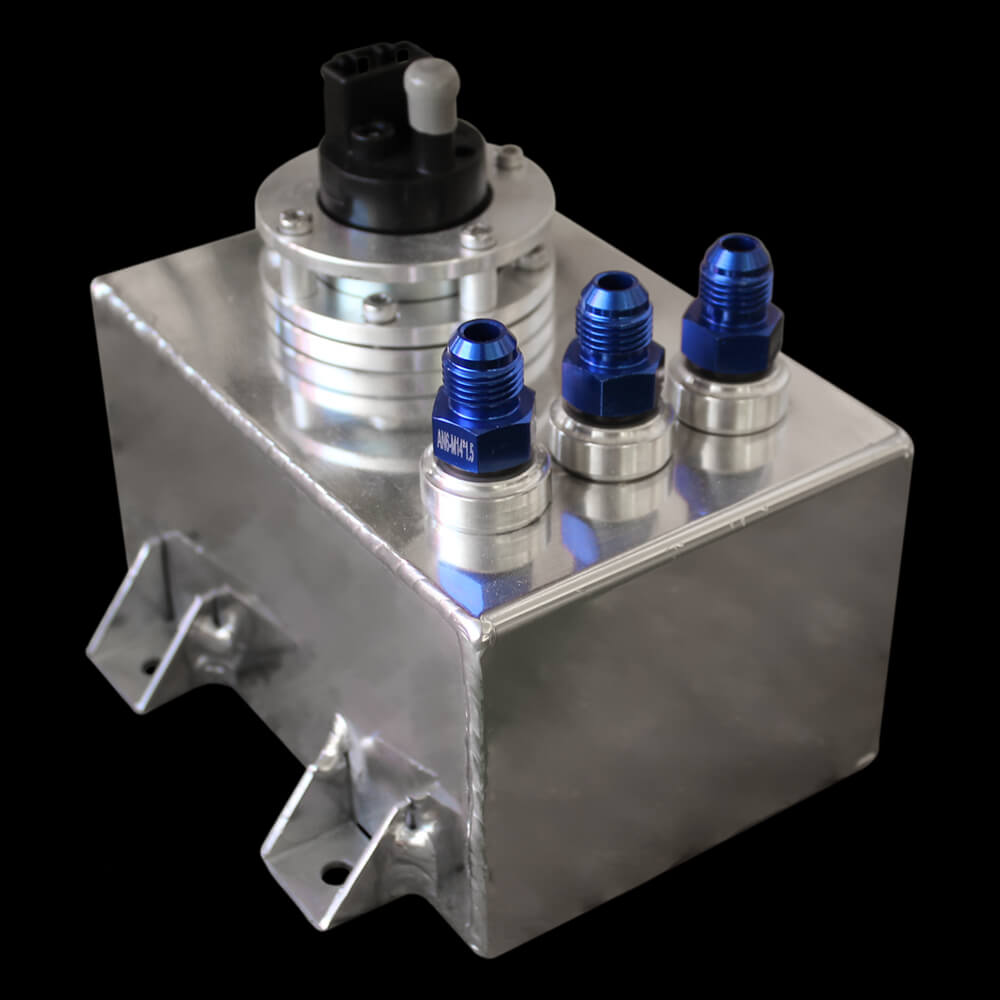

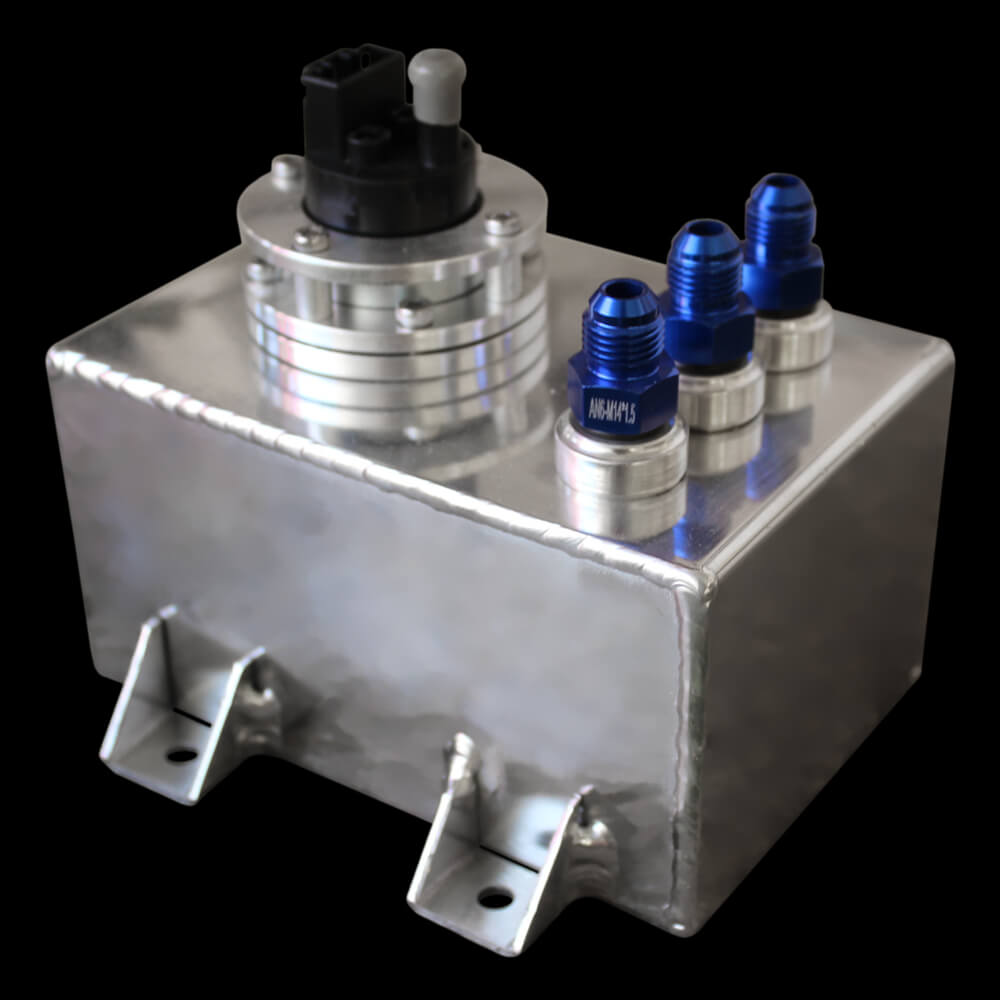

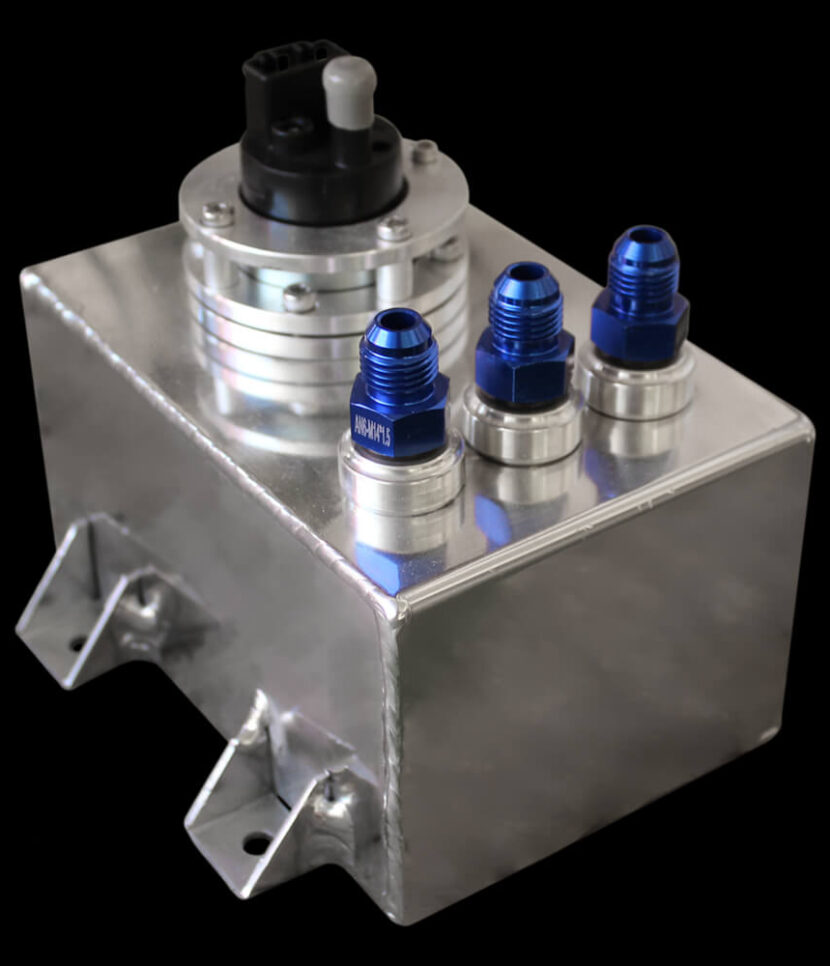

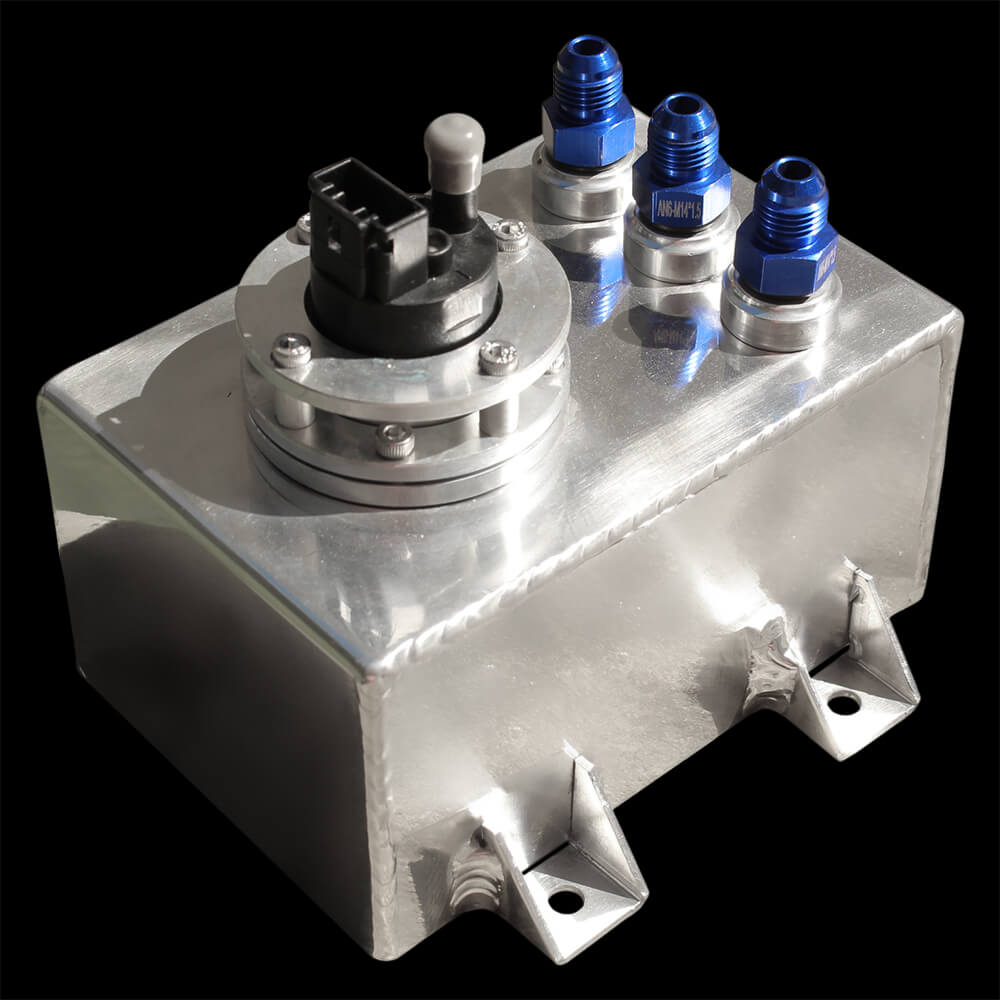

1 Litre Polished Swirl Pot/Tank + 340LPH Fuel Pump + 3 x AN6 Blue Fittings

This polished swirl pot uses a Walbro GS341 or GS342 type pump to create a compact fuel system.

It is capable of supporting upto 400 BHP.

In the box:

1 x Tank

1 x 340 LPH Pump

3 x Blue AN-6 Fittings

Size is 150mm x 100mm x 80mm

It has 3 AN-6 ports so you can either run it the conventional way with lift pump in, tank return and rail return, or you can use a ticker pump at carb pressure and blank off the ports.

This means that if you are converting an older car from carb(s) to fuel injection you don’t need to change the fuel system too much. Just connect the current pump from the tank to this tank and then run from the Walbro pump through a filter to the injectors and then through a fuel pressure regulator and back to this tank. We have made this tank compact so it can be installed under the bonnet if required further simplifing the conversion.

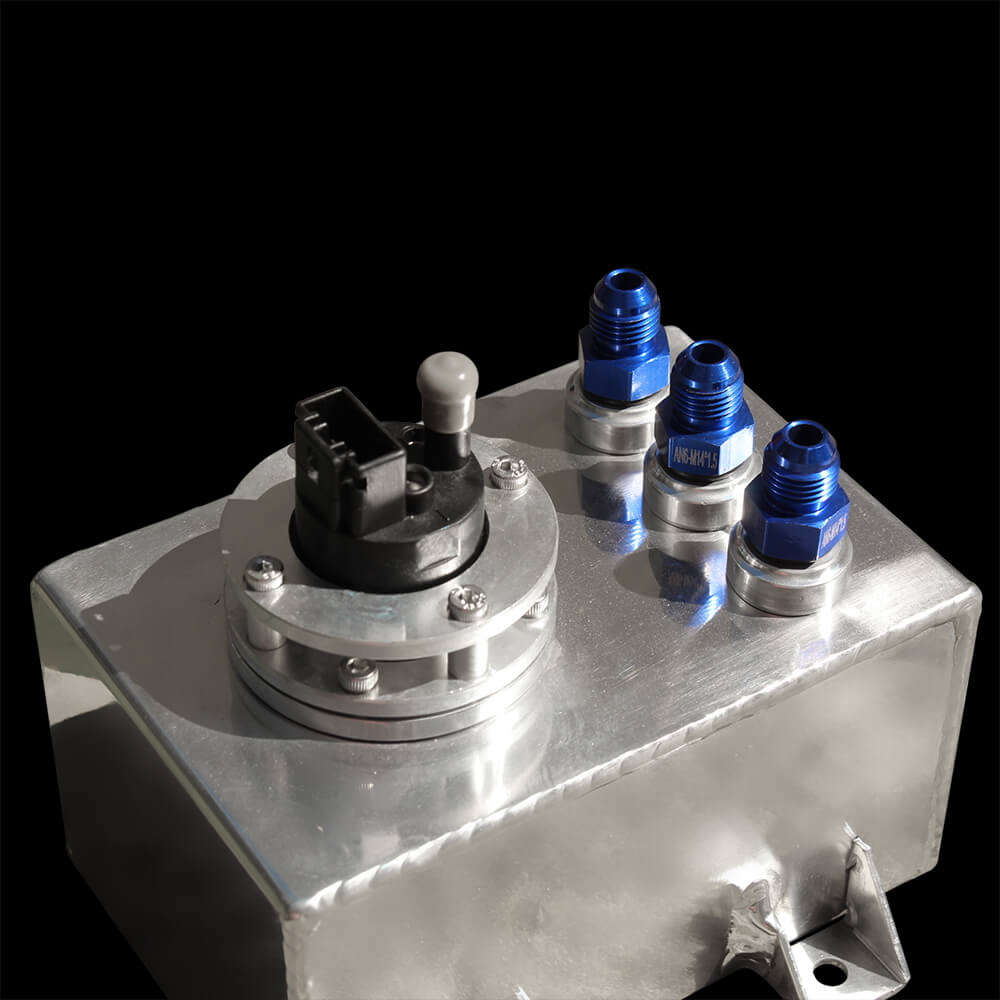

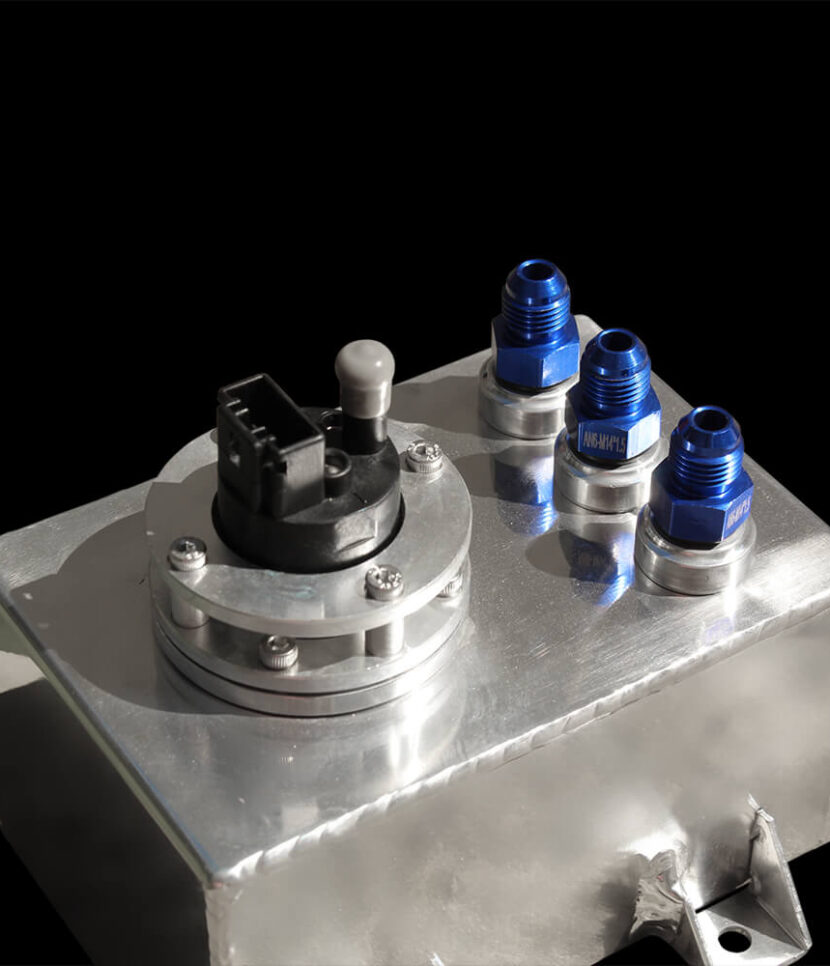

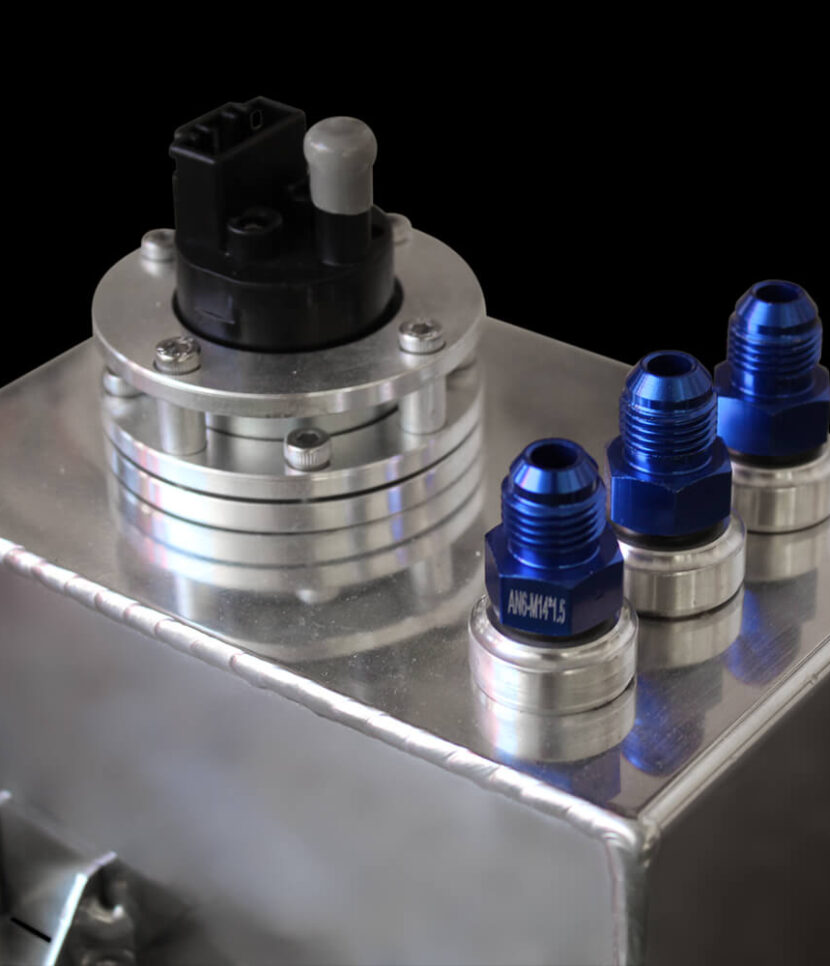

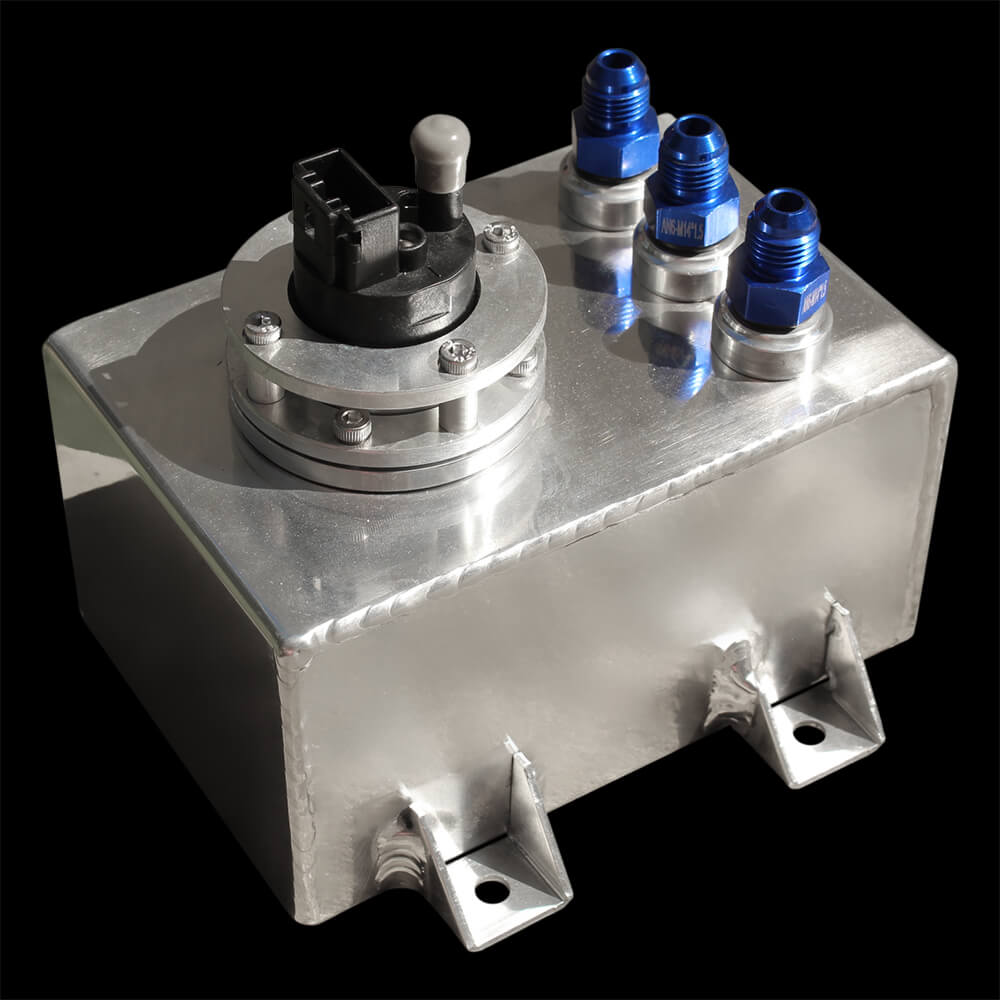

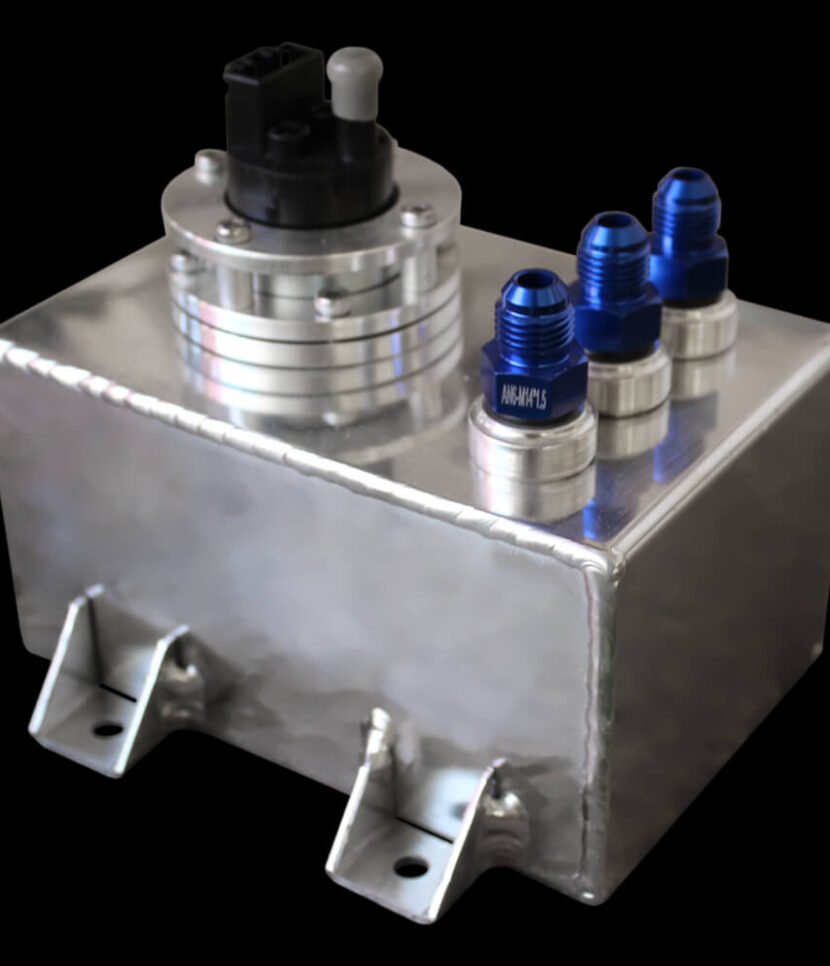

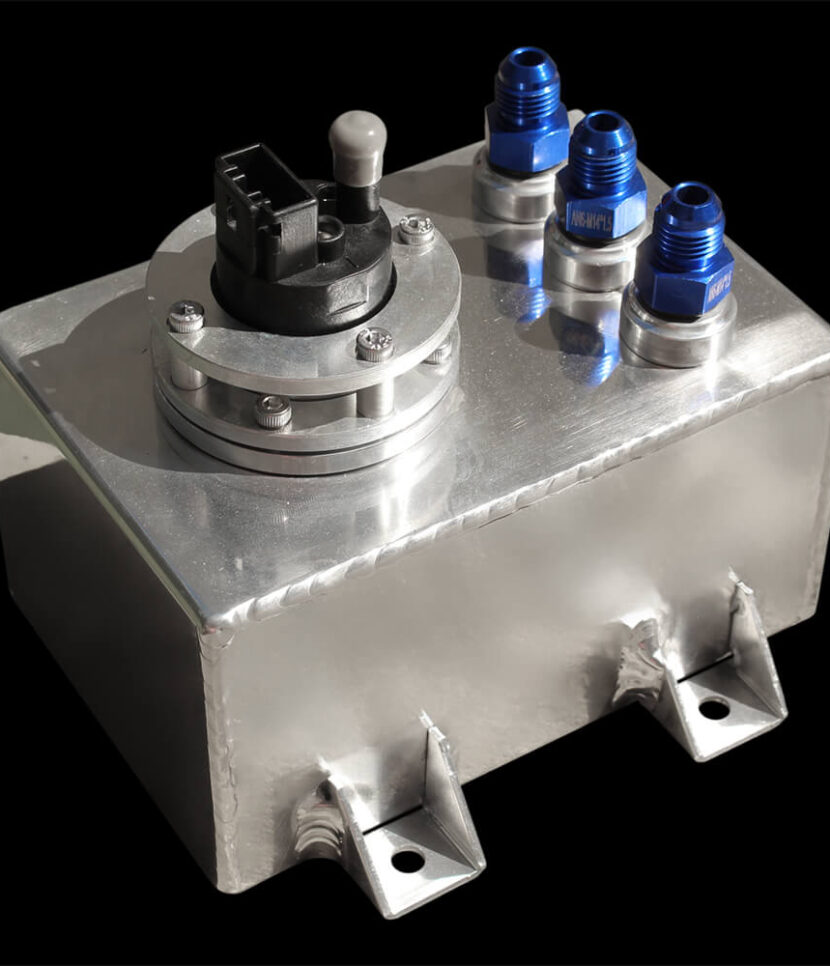

In the picture you will see a spacer that fits to the pump to hold it off the bottom of the tank, there is then a seal that seals the pump into the tank and finally a top ring that goes over the top of the pump to stop it lifting out of the tank.

The tank will hold 1 litre of fuel and is made from aluminium with a black finish.

The mounting tabs have the ribs shown.
